Dosatron

• Low-flow water-powered pumps.
• Available in a range of models with tailored dilution ranges.
• Ideal for nutrient and pH dosing in hydroponic applications.
• Consistent and precise injection without electricity.
• Two seal options for acidic vs. alkaline additives.
• Easy to integrate into existing irrigation systems.

Dosatron® Water Hammer Arrestor Kits are used to prevent the potential damaging effects of water hammer, which is defined as a pressure surge or shock wave caused when a fluid in motion is forced to stop or change directions suddenly, often due to a quick-closing valve.

• Engineered specifically for indoor home grows with an average of 4 to 24 lights or 12 to 96 plants.
• Flow Rates: 0.5 to 5 GPM (1.89 to 18.9 LPM)
• Pressure Range: 35 – 87 psi (2.5 - 6 BAR)
• Connection Size: ¾ inch inlet / outlet
• Dosing Range %: 0.05 - 0.5
• Dosing Range mL/gallon: 1.875 - 18.75 mL/G
• Dosing Range Ratio: 1:2000 to 1:200
• Maximum Temperature: 104 F (40 C)
• System Weight: 14.5 lb (6.585 kg)
• Spare Unit Weight: 2.5 lb (1.15 kg)
• Assembled System Dimensions: 11.81 L x 12.4 W x 17.72 H in (L 300 x l 315 x H 450 mm)
• Max Dosing Unit Dimensions: 6.3 L x 5.26 W x 13.58 H in (L 160 x l 133.5 x H 345 mm)
• Included Accessories: Mounting bracket, suction hose, weighted strainer, union connections and quick start guide.

• Ideal for reliable and consistent dosing in greenhouse, horticultural, boom and industrial applications.
• Dilution Range: 1:500 to 1:50 (0.2% to 2%)
• Water Flow Range: 0.44 to 26 GPM
• Operating Pressure Range: 4.3 to 116 PSI
• Dimensions (LxWxH): 25 x 9 x 8 in (63.5 × 22.86 × 20.32 cm)
• Weight: 6 lbs (2.72 kg)
• Connection Size: 1 1/4 in NPT
• Maximum Temperature: 104°F

"""Protect your Dilution Solutions Nutrient Delivery System with all the necessary accessories for a successful installation. Includes incoming on/off ball valve an in-line pre-filter with 200 mesh (80 micron) screen a pressure regulator with gauge (except for """"DAB"""" kit) a fresh water test port a check valve and all necessary plumbing connections to put it all together. Assembly required. For a complete Nutrient Delivery System we recommend a Starter Kit Mixing Chamber Kit(s) Monitor Kit an"""

• The best pump for mixing nutrients.
• Dilution Range: 1:3000 to 1:333 (0.03% to 0.3%).
• Ratio Range mL: 1.25 to 11 mL.
• Ratio Range tsp: 0.25 to 2.25 tsp.
• Water Flow Range: 0.05 to 14 GPM.
• Operating Pressure Range: 4.3 to 85 PSI.
• Dimensions: 21″ x 6 5/16″.
• Weight: 6 lbs.
• Connection Size: 3/4″ NPT.
• Maximum Temperature: 104°F (40°C).
• Includes a union for easy installation into the Nutrient Delivery System.

• High flow hydroponic pump.
• Dilution Range: 1:3000 to 1:500 (0.03% to 0.2%).
• Ratio Range mL: 1.25 to 7.5 mL.
• Ratio Range tsp: 0.25 to 1.5 tsp.
• Water Flow Range: 2.2 to 40 GPM.
• Operating Pressure Range: 4.3 to 116 PSI.
• Dimensions: 25 1/4″ x 8 1/2″.
• Weight: 12 lbs.
• Connection Size: 1 1/2″ NPT.
• Maximum Temperature: 104°F (40°C).
• 63% fewer parts, metal free piston.
• Can be installed in parallel to increase the water flow.
• Includes a union for easy installation into the Nutrient Delivery System.

• High flow hydroponic pump.
• Dilution Range: 1:100 to 1:20 (1% to 5%).
• Ratio Range mL: 37.5 to 190 mL.
• Ratio Range tsp: 7.5 to 38 tsp.
• Water Flow Range: 2.2 to 40 GPM.
• Operating Pressure Range: 7.2 to 116 PSI.
• Dimensions: 25 1/4″ x 8 1/2″.
• Weight: 12 lbs.
• Connection Size: 1 1/2″ NPT.
• Maximum Temperature: 104° F.
• Can be installed in parallel to increase the water flow.
• 63% fewer parts, metal free piston.
• Includes a union for easy installation into the Nutrient Delivery System.

• Ideal for reliable and consistent dosing in greenhouse, horticultural, boom and industrial applications.
• Dilution Range: 1:500 to 1:50 (0.2% to 2%)
• Water Flow Range: 0.44 to 26 GPM
• Operating Pressure Range: 4.3 to 116 PSI
• Dimensions (LxWxH): 25 x 9 x 8 in (63.5 × 22.86 × 20.32 cm)
• Weight: 6 lbs (2.72 kg)
• Connection Size: 1 1/4 in NPT
• Maximum Temperature: 104°F

• High flow nutrient dosing pump.
• Dilution Range: 1:500 - 1:50 (0.2 to 2%).
• Ratio Range mL: 7.5 to 75 mL.
• Ratio Range tsp: 1.5 to 15 tsp.
• Water Flow Range: 2.2 to 40 GPM.
• Operating Pressure Range: 4.3 to 116 PSI.
• Dimensions: 25 1/4″ x 8 1/2″.
• Weight: 12 lbs.
• Connection Size: 1 1/2″ NPT.
• Maximum Temperature: 104°F (40°C).
• 63% fewer parts, metal free piston.
• Can be installed in parallel to increase the water flow.
• Includes a union for easy installation into the Nutrient Delivery System.

• High flow hydroponic pump.
• Dilution Range: 1:3000 to 1:500 (0.03% to 0.2%).
• Ratio Range mL: 1.25 to 7.5 mL.
• Ratio Range tsp: 0.25 to 1.5 tsp.
• Water Flow Range: 2.2 to 40 GPM.
• Operating Pressure Range: 4.3 to 116 PSI.
• Dimensions: 25 1/4″ x 8 1/2″.
• Weight: 12 lbs.
• Connection Size: 1 1/2″ NPT.
• Maximum Temperature: 104° F.
• Can be installed in parallel to increase the water flow.
• 63% fewer parts, metal free piston.
• Includes a union for easy installation into the Nutrient Delivery System.

• The best pump for mixing nutrients.
• Dilution Range: 1:3000 to 1:333 (0.03% to 0.3%).
• Ratio Range mL: 1.25 to 11 mL.
• Ratio Range tsp: 0.25 to 2.25 tsp.
• Water Flow Range: 0.05 to 14 GPM.
• Operating Pressure Range: 4.3 to 85 PSI.
• Dimensions: 21″ x 6 5/16″.
• Weight: 6 lbs.
• Connection Size: 3/4″ NPT.
• Maximum Temperature: 104° F.
• Includes a union for easy installation into the Nutrient Delivery System.

• Dilution Range: 1:100 to 1:10 (1% to 10%).
• Injection Range mL: 37.5 to 375 mL/gal.
• Injection Range tsp: 7.5 to 75 tsp/gal.
• Water Flow Range: 0.05 to 14 GPM.
• Operating Pressure Range: 7 to 85 PSI.
• Available Housing Materials: Polypropylene.
• Dimensions: 19 1/18 x 6 5/16 in (48.40 cm x 16.03 cm).
• Weight: 6 lbs (2.72 kg).
• Connection Size: 3/4 in NPT.
• Maximum Temperature: 104°F (40°C).

Top o-ring for Dosatron Lo-Flo Mixing Chamber.

• Injection Hose Assembly replacement part for the Dosatron D14 - 14 GPM Series dosing pump.
• Keep your Dosatron dosing pump in top shape with genuine replacement parts.

• Ideal injector for common liquid fertilizer programs.
• Dilution Range: 1:1000 - 1:100 (0.1% to 1%).
• Ratio Range mL: 3.75 to 37.5 mL.
• Ratio Range tsp: 0.75 to 7.5 tsp.
• Water Flow Range: 0.05 to 14 GPM.
• Operating Pressure Range: 4.3 to 85 PSI.
• Dimensions: 19 1/18″ x 6 5/16″.
• Weight: 6 lbs.
• Connection Size: 3/4″ NPT.
• Maximum Temperature: 104° F.
• Higher flow rates and greater chemical compatibility compared to existing technology.
• Easy installation; can be adapted to new or existing Lo-Flo Nutrient Delivery Systems.
• Extended dosing range achieved by swapping out the injection stem and plunger assembly.

• Ideal injector for common liquid fertilizer programs.
• Dilution Range: 1:1000 - 1:100 (0.1% to 1%).
• Water Flow Range: 2.2 to 40 GPM.
• Operating Pressure Range: 4.3 to 116 PSI.
• Dimensions: 125 1/4″ x 8 1/2″.
• Weight: 6 lbs.
• Connection Size: 1.5″ NPT.
• Maximum Temperature: 104°F.
• Higher flow rates and greater chemical compatibility compared to existing technology.
• Easy installation; can be adapted to new or existing Hi-Flo Nutrient Delivery Systems.
• Extended dosing range achieved by swapping out the injection stem and plunger assembly.

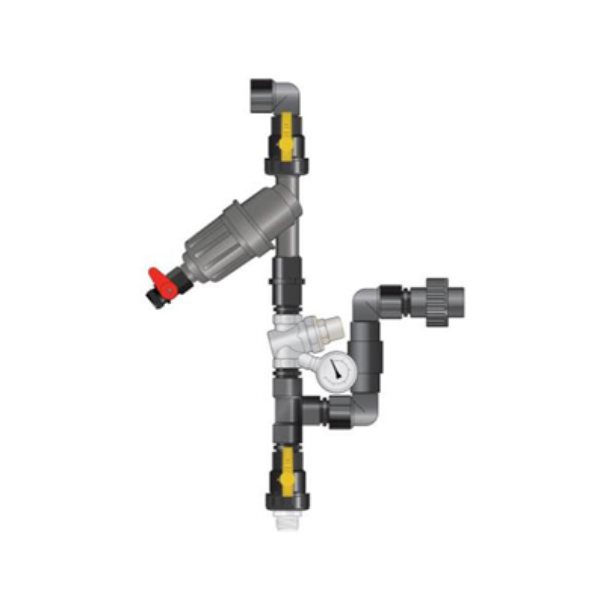

• Includes all necessary parts for the inlet of your Nutrient Delivery System.
• Best suited for systems with consistent inlet pressure or a constant pressure pump.
• Ideal for use with a booster pump or a pump with VFD control.
• A pressure regulator is recommended for inlet pressures above 85 PSI.

Features: Union, check valve, elbows, nipples, tee, hose adapter, ball valves, coupler, filter, pressure gauge, seal thread tape.

To Complete the Lo-Flo Nutrient Delivery System, you will also need Dosatron Injectors, Mixing Chamber Kit(s), pH/ EC Monitor Kit or END Kit, and a Water Hammer Arrestor Kit.

The Dosatron® Water-Powered Nutrient Delivery System Mixing Chamber Kit enhances the blending as the solution passes through. It’s a must for silicates.

Includes:

• Union.
• Mixing chamber.
• Nipples.
• Seal thread tape.

Replacement part for Dosatron® D14MZ3000.

Replacement part for Dosatron® D14MZ2/D14MZ1000.

• High flow hydroponic pump.
• Dilution Range: 1:3000 to 1:500 (0.03% to 0.2%).
• Ratio Range mL: 1.25 to 7.5 mL.
• Ratio Range tsp: 0.25 to 1.5 tsp.
• Water Flow Range: 2.2 to 40 GPM.
• Operating Pressure Range: 4.3 to 116 PSI.
• Dimensions: 25 1/4″ x 8 1/2″.
• Weight: 12 lbs.
• Connection Size: 1 1/2″ NPT.
• Maximum Temperature: 104° F.
• Can be installed in parallel to increase the water flow.
• 63% fewer parts, metal free piston.
• Includes a union for easy installation into the Nutrient Delivery System.

Light blocking mixing chamber sunshade for Dosatron® 3/4" mixing chambers. Prevents the light from impacting nutrient rich water, eliminating the potential for biofilm and algae growth in the chamber. Removable cover for the clear bowl portion of the mixing chamber.

Dosatron®'s Water-Powered Nutrient Delivery System Lo-Flo Monitor Kit measures and displays the well-blended outgoing solution providing peace of mind.

Features: Union, close nipples, nipples, tee, pressure gauge, pressure gauge tee, cross, check valve, fittings, ball valves, hose adapter, monitor, probe holder assembly, and seal thread tape.

• 3/4 inch water hammer arrestor kit.
• Normal operating pressure - 35 to 500 psi.
• Spike pressure not to exceed 2,000 psi.

Features: stainless steel water hammer arrestor, 4-inch nipple, tee, elbow, close nipple, union, and a roll of thread seal tape.

Extend the life of your Dosatron® D14MZ2 - 14 GPM and D14MZ2-HY with Dosatron's Rebuild Kit.

Two-Part Kit Includes:

• Part 1: piston kit contents
• Part 2: seal kit contents, complete, detailed instructions

Injection seal kit for the Dosatron® D14MZ2 - 14 GPM. Recommended for a yearly maintenance.

Kit Includes:

• Injection sleeve o-ring.
• Check valve assembly.
• Injection stem o-ring.
• Plunger seal.

Mini maintenance kit for the Dosatron® D14MZ2 - 14 GPM. Recommended for a regular maintenance.

Kit Includes:

• Plunger seal.
• Top guide.
• Check valve cone.
• Check valve spring.
• Check valve cone o-ring.
• Dosa-Lube (Silicone).
