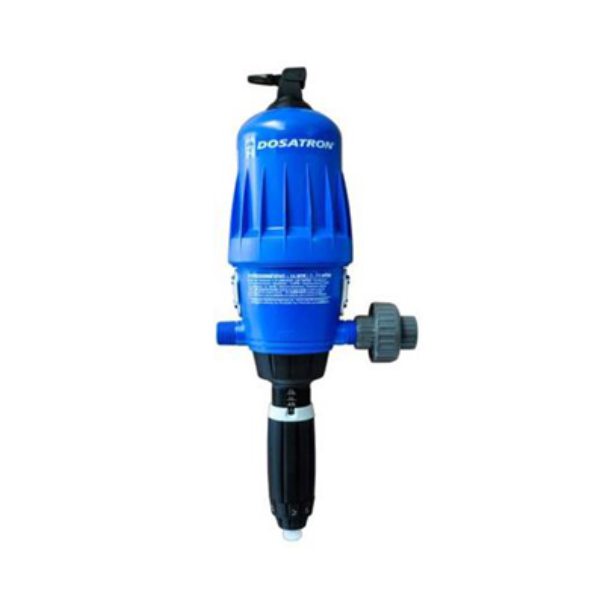

Dosatron

• Low-flow water-powered pumps.
• Available in a range of models with tailored dilution ranges.
• Ideal for nutrient and pH dosing in hydroponic applications.
• Consistent and precise injection without electricity.
• Two seal options for acidic vs. alkaline additives.
• Easy to integrate into existing irrigation systems.

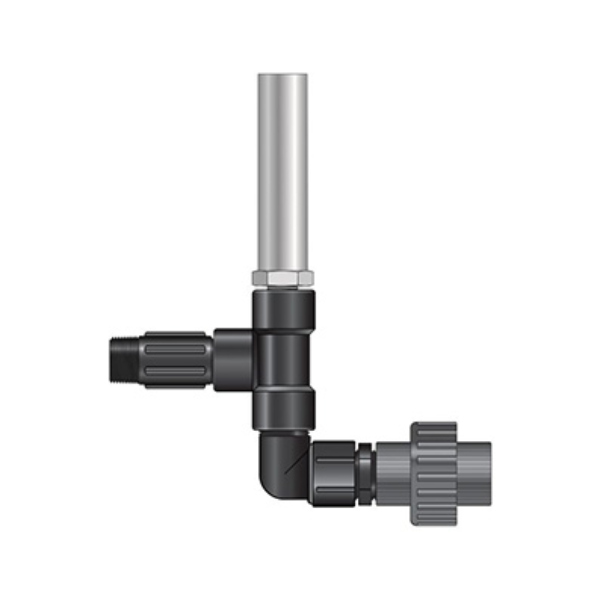

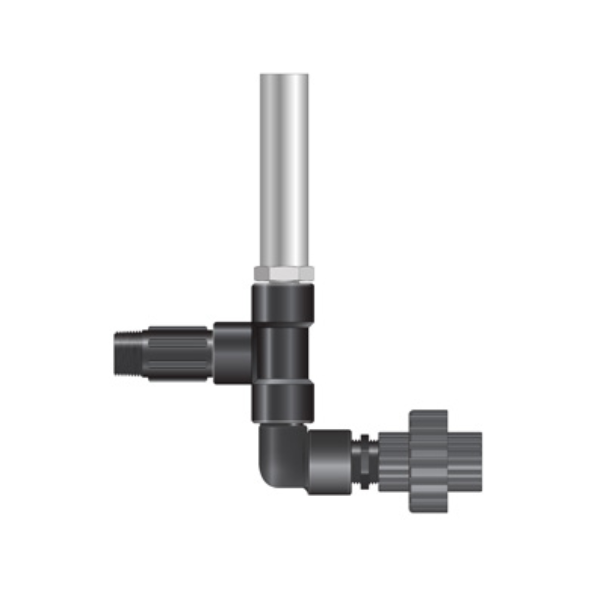

Dosatron® Water Hammer Arrestor Kits are used to prevent the potential damaging effects of water hammer, which is defined as a pressure surge or shock wave caused when a fluid in motion is forced to stop or change directions suddenly, often due to a quick-closing valve.

• Engineered specifically for indoor home grows with an average of 4 to 24 lights or 12 to 96 plants.
• Flow Rates: 0.5 to 5 GPM (1.89 to 18.9 LPM)
• Pressure Range: 35 – 87 psi (2.5 - 6 BAR)
• Connection Size: ¾ inch inlet / outlet
• Dosing Range %: 0.05 - 0.5
• Dosing Range mL/gallon: 1.875 - 18.75 mL/G
• Dosing Range Ratio: 1:2000 to 1:200
• Maximum Temperature: 104 F (40 C)
• System Weight: 14.5 lb (6.585 kg)
• Spare Unit Weight: 2.5 lb (1.15 kg)
• Assembled System Dimensions: 11.81 L x 12.4 W x 17.72 H in (L 300 x l 315 x H 450 mm)
• Max Dosing Unit Dimensions: 6.3 L x 5.26 W x 13.58 H in (L 160 x l 133.5 x H 345 mm)
• Included Accessories: Mounting bracket, suction hose, weighted strainer, union connections and quick start guide.

• Ideal for reliable and consistent dosing in greenhouse, horticultural, boom and industrial applications.
• Dilution Range: 1:500 to 1:50 (0.2% to 2%)
• Water Flow Range: 0.44 to 26 GPM
• Operating Pressure Range: 4.3 to 116 PSI
• Dimensions (LxWxH): 25 x 9 x 8 in (63.5 × 22.86 × 20.32 cm)
• Weight: 6 lbs (2.72 kg)
• Connection Size: 1 1/4 in NPT
• Maximum Temperature: 104°F

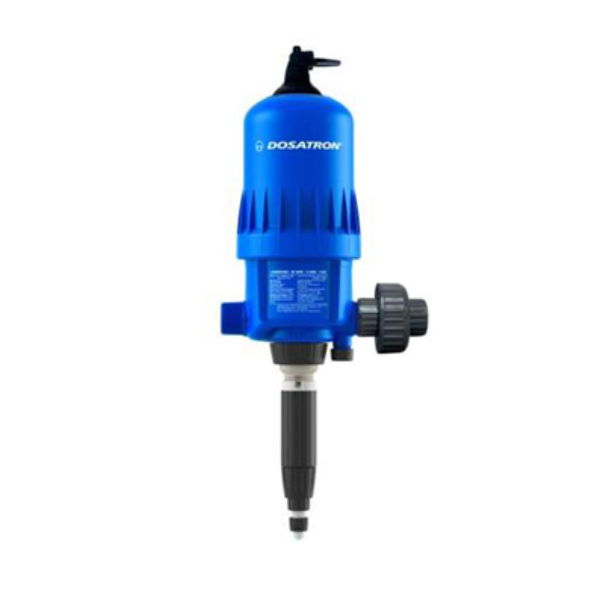

• High flow hydroponic pump.
• Dilution Range: 1:3000 to 1:500 (0.03% to 0.2%).
• Ratio Range mL: 1.25 to 7.5 mL.
• Ratio Range tsp: 0.25 to 1.5 tsp.
• Water Flow Range: 2.2 to 40 GPM.
• Operating Pressure Range: 4.3 to 116 PSI.
• Dimensions: 25 1/4″ x 8 1/2″.
• Weight: 12 lbs.
• Connection Size: 1 1/2″ NPT.
• Maximum Temperature: 104°F (40°C).
• 63% fewer parts, metal free piston.
• Can be installed in parallel to increase the water flow.
• Includes a union for easy installation into the Nutrient Delivery System.

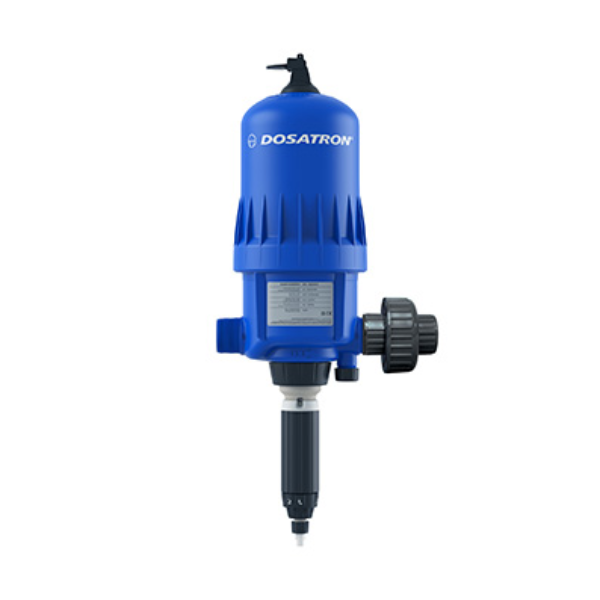

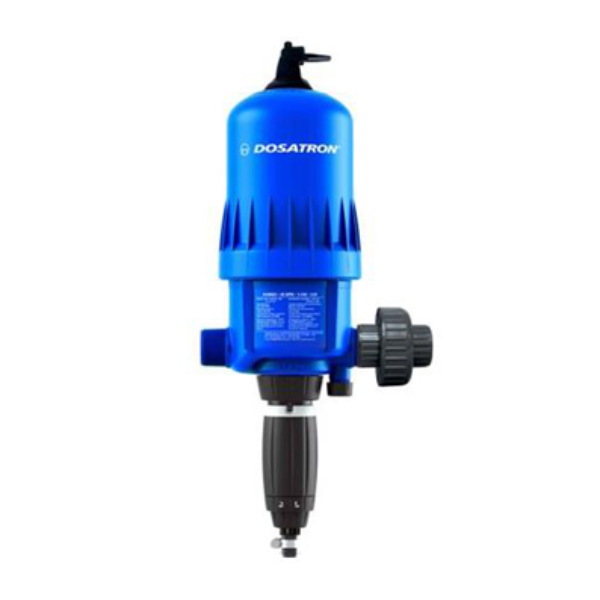

• High flow hydroponic pump.
• Dilution Range: 1:100 to 1:20 (1% to 5%).
• Ratio Range mL: 37.5 to 190 mL.
• Ratio Range tsp: 7.5 to 38 tsp.
• Water Flow Range: 2.2 to 40 GPM.
• Operating Pressure Range: 7.2 to 116 PSI.
• Dimensions: 25 1/4″ x 8 1/2″.
• Weight: 12 lbs.
• Connection Size: 1 1/2″ NPT.
• Maximum Temperature: 104° F.
• Can be installed in parallel to increase the water flow.
• 63% fewer parts, metal free piston.
• Includes a union for easy installation into the Nutrient Delivery System.

"""Protect your Dilution Solutions Nutrient Delivery System with all the necessary accessories for a successful installation. Includes incoming on/off ball valve an in-line pre-filter with 200 mesh (80 micron) screen a pressure regulator with gauge (except for """"DAB"""" kit) a fresh water test port a check valve and all necessary plumbing connections to put it all together. Assembly required. For a complete Nutrient Delivery System we recommend a Starter Kit Mixing Chamber Kit(s) Monitor Kit an"""

• The best pump for mixing nutrients.
• Dilution Range: 1:3000 to 1:333 (0.03% to 0.3%).
• Ratio Range mL: 1.25 to 11 mL.
• Ratio Range tsp: 0.25 to 2.25 tsp.
• Water Flow Range: 0.05 to 14 GPM.
• Operating Pressure Range: 4.3 to 85 PSI.
• Dimensions: 21″ x 6 5/16″.
• Weight: 6 lbs.
• Connection Size: 3/4″ NPT.
• Maximum Temperature: 104°F (40°C).
• Includes a union for easy installation into the Nutrient Delivery System.

• High flow nutrient dosing pump.
• Dilution Range: 1:500 - 1:50 (0.2 to 2%).
• Ratio Range mL: 7.5 to 75 mL.
• Ratio Range tsp: 1.5 to 15 tsp.
• Water Flow Range: 2.2 to 40 GPM.
• Operating Pressure Range: 4.3 to 116 PSI.
• Dimensions: 25 1/4″ x 8 1/2″.
• Weight: 12 lbs.
• Connection Size: 1 1/2″ NPT.
• Maximum Temperature: 104°F (40°C).
• 63% fewer parts, metal free piston.
• Can be installed in parallel to increase the water flow.
• Includes a union for easy installation into the Nutrient Delivery System.

• High flow hydroponic pump.
• Dilution Range: 1:3000 to 1:500 (0.03% to 0.2%).
• Ratio Range mL: 1.25 to 7.5 mL.
• Ratio Range tsp: 0.25 to 1.5 tsp.
• Water Flow Range: 2.2 to 40 GPM.
• Operating Pressure Range: 4.3 to 116 PSI.
• Dimensions: 25 1/4″ x 8 1/2″.
• Weight: 12 lbs.
• Connection Size: 1 1/2″ NPT.
• Maximum Temperature: 104° F.
• Can be installed in parallel to increase the water flow.
• 63% fewer parts, metal free piston.
• Includes a union for easy installation into the Nutrient Delivery System.

• The best pump for mixing nutrients.
• Dilution Range: 1:3000 to 1:333 (0.03% to 0.3%).
• Ratio Range mL: 1.25 to 11 mL.
• Ratio Range tsp: 0.25 to 2.25 tsp.
• Water Flow Range: 0.05 to 14 GPM.
• Operating Pressure Range: 4.3 to 85 PSI.
• Dimensions: 21″ x 6 5/16″.
• Weight: 6 lbs.
• Connection Size: 3/4″ NPT.
• Maximum Temperature: 104° F.
• Includes a union for easy installation into the Nutrient Delivery System.

• Engineered specifically for indoor home grows with an average of 4 to 24 lights or 12 to 96 plants.
• Flow Rates: 0.5 to 5 GPM (1.89 to 18.9 LPM)
• Pressure Range: 35 – 87 psi (2.5 - 6 BAR)
• Connection Size: ¾ inch inlet / outlet
• Dosing Range %: 0.05 - 0.5
• Dosing Range mL/gallon: 1.875 - 18.75 mL/G
• Dosing Range Ratio: 1:2000 to 1:200
• Maximum Temperature: 104 F (40 C)
• System Weight: 14.5 lb (6.585 kg)
• Spare Unit Weight: 2.5 lb (1.15 kg)
• Assembled System Dimensions: 11.81 L x 12.4 W x 17.72 H in (L 300 x l 315 x H 450 mm)
• Max Dosing Unit Dimensions: 6.3 L x 5.26 W x 13.58 H in (L 160 x l 133.5 x H 345 mm)
• Included Accessories: Mounting bracket, suction hose, weighted strainer, union connections and quick start guide.

Maintenance kit for Dosatron® Hobby Expansion Dosers [D15RE05] and Dosatron Hobby Cultivator System Dosers [SYSD15RE05VF].

Strainer Assembly for the D40MZ1000 40 GPM and D40MZ1000-HY 40 GPM Dosatron® injectors.

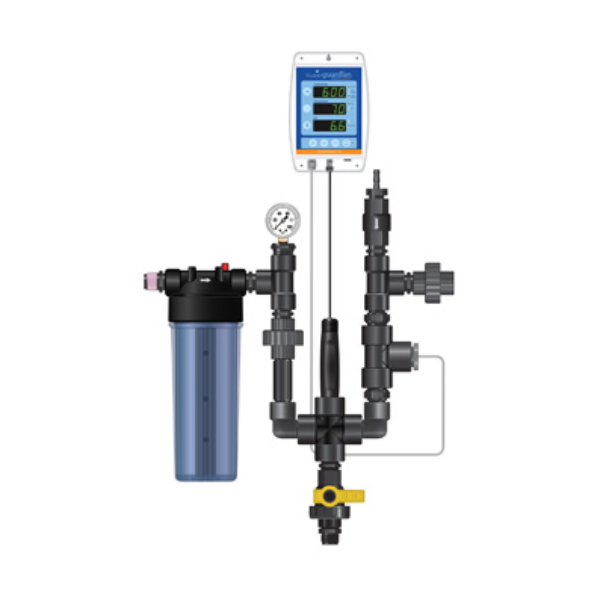

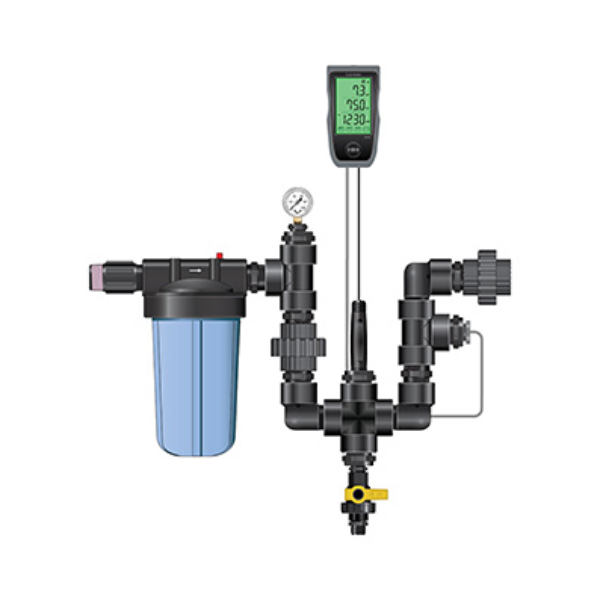

• Alternative to the Dosatron® Monitor Kit.
• Requires additional components: Dosatron Injectors, Standard Starter Kit, Mixing Chamber Kit, Water Hammer Arrestor Kit.
• Compatible with Hobby Cultivator by Dosatron for indoor home grows and basement grows.

• Dilution Range: 1:100 to 1:10 (1% to 10%).
• Injection Range mL: 37.5 to 375 mL/gal.
• Injection Range tsp: 7.5 to 75 tsp/gal.
• Water Flow Range: 0.05 to 14 GPM.
• Operating Pressure Range: 7 to 85 PSI.
• Available Housing Materials: Polypropylene.
• Dimensions: 19 1/18 x 6 5/16 in (48.40 cm x 16.03 cm).
• Weight: 6 lbs (2.72 kg).
• Connection Size: 3/4 in NPT.
• Maximum Temperature: 104°F (40°C).

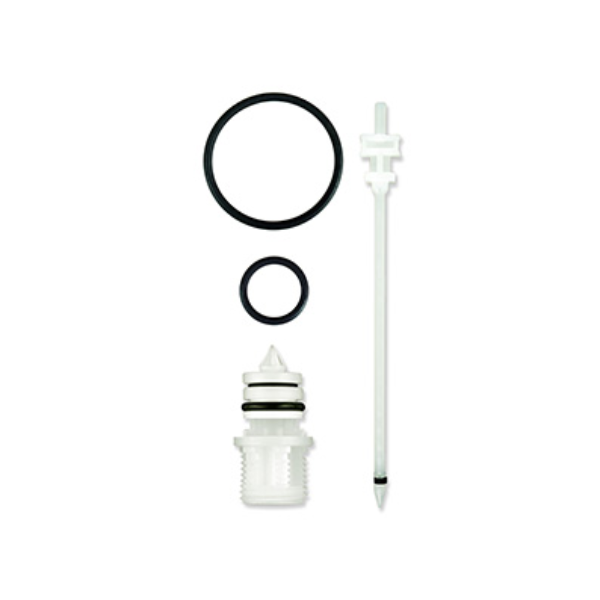

Injection seal kit for the Dosatron® D14MZ1000 - 14 GPM.

Kit Contains:

• (1) PJDI234 Check valve assembly.
• (1) JDI100 Injection sleeve O-ring.
• (1) JDI208 Plunger seal.
• (1) JDI120 Injection stem O-ring.

Top o-ring for Dosatron Lo-Flo Mixing Chamber.

DM11 and D14 Series replacement part.

• Ideal for reliable and consistent dosing in greenhouse, horticultural, boom and industrial applications.
• Dilution Range: 1:500 to 1:50 (0.2% to 2%)
• Water Flow Range: 0.44 to 26 GPM
• Operating Pressure Range: 4.3 to 116 PSI
• Dimensions (LxWxH): 25 x 9 x 8 in (63.5 × 22.86 × 20.32 cm)
• Weight: 6 lbs (2.72 kg)
• Connection Size: 1 1/4 in NPT
• Maximum Temperature: 104°F

The Dosatron® Hobby Cultivator Expansion Unit allows you to adapt your multi-pump system by adding more pumps based on the needs of your application.

• The best fertilizer injector for drip irrigation.
• Dilution Range: 1:500 to 1:50 (0.2% to 2%).
• Ratio Range mL: 7.5 to 75 mL/gal.
• Ratio Range tsp: 1.5 to 15 tsp.
• Water Flow Range: 0.05 to 14 GPM.
• Operating Pressure Range: 4.3 to 85 PSI.
• Dimensions: 19 1/18″ x 6 5/16″.
• Weight: 6 lbs.
• Connection Size: 3/4″ NPT.
• Maximum Temperature: 104°F (40°C).
• Includes a union for easy installation into the Nutrient Delivery System.

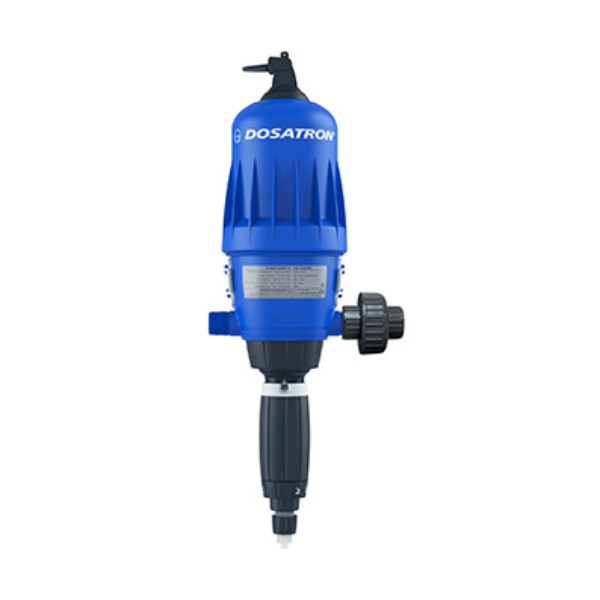

• Ideal injector for common liquid fertilizer programs.
• Dilution Range: 1:1000 - 1:100 (0.1% to 1%).
• Ratio Range mL: 3.75 to 37.5 mL.
• Ratio Range tsp: 0.75 to 7.5 tsp.
• Water Flow Range: 0.05 to 14 GPM.
• Operating Pressure Range: 4.3 to 85 PSI.
• Dimensions: 19 1/18″ x 6 5/16″.
• Weight: 6 lbs.
• Connection Size: 3/4″ NPT.
• Maximum Temperature: 104° F.
• Higher flow rates and greater chemical compatibility compared to existing technology.
• Easy installation; can be adapted to new or existing Lo-Flo Nutrient Delivery Systems.
• Extended dosing range achieved by swapping out the injection stem and plunger assembly.

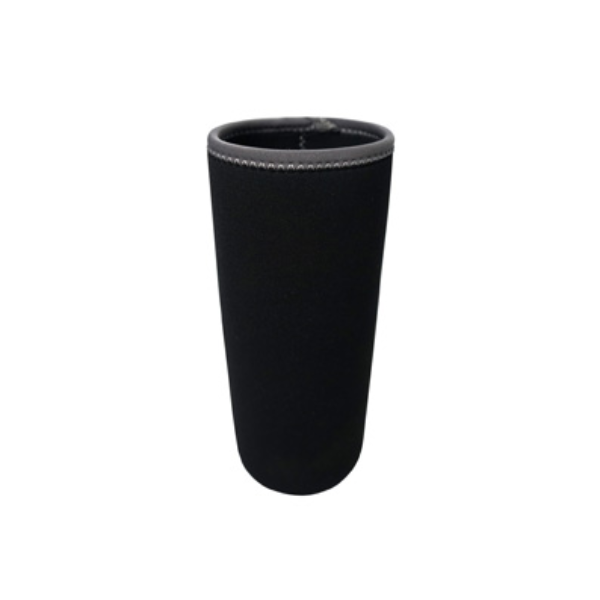

Light blocking mixing chamber sunshade for Dosatron® 3/4" mixing chambers. Prevents the light from impacting nutrient rich water, eliminating the potential for biofilm and algae growth in the chamber. Removable cover for the clear bowl portion of the mixing chamber.

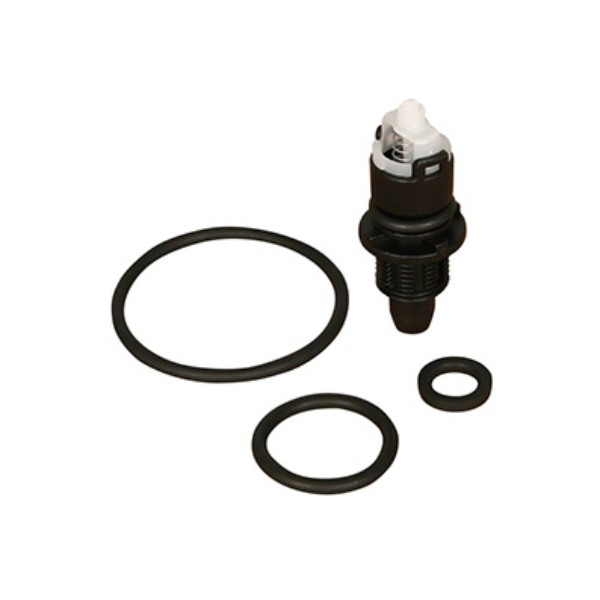

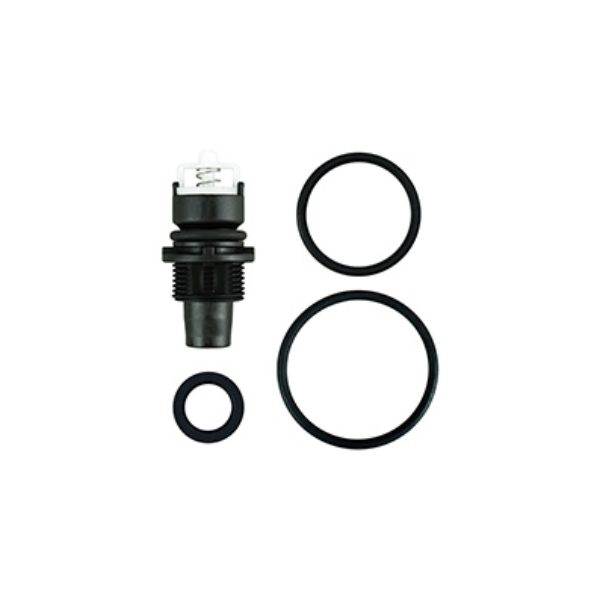

Injection seal kit for the Dosatron® D14MZ2 - 14 GPM. Recommended for a yearly maintenance.

Kit Includes:

• Injection sleeve o-ring.
• Check valve assembly.
• Injection stem o-ring.
• Plunger seal.

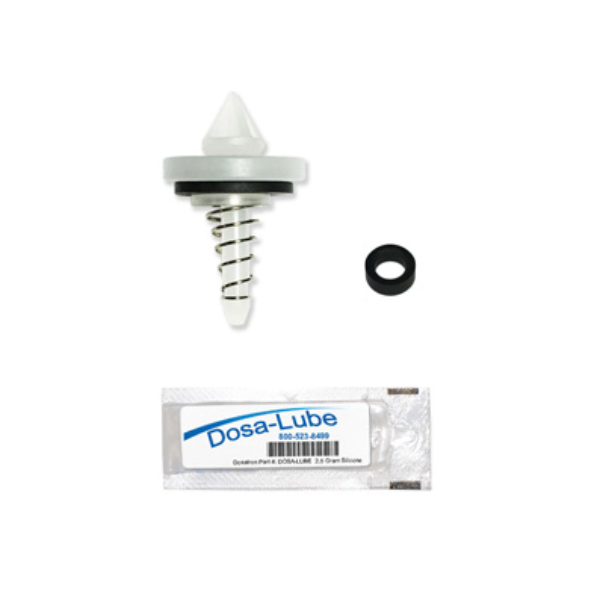

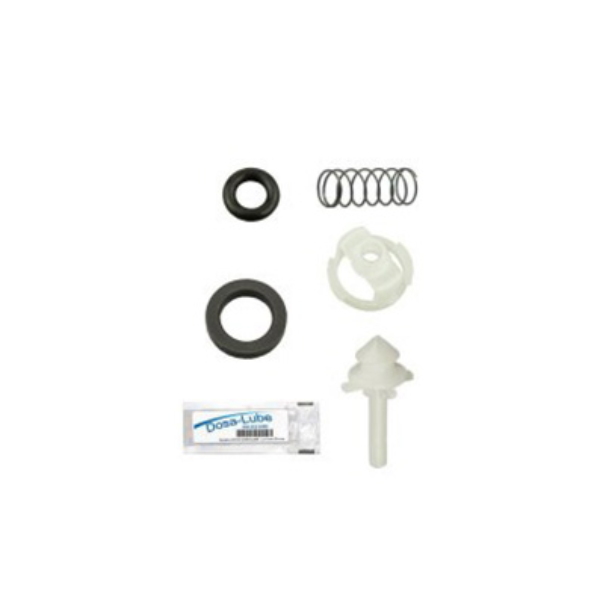

Mini maintenance kit for the Dosatron® D14MZ3000 and D14TMZ3000 - 14 GPM.

Kit Includes:

• Plunger seal.
• Upper check valve assembly.
• Dosa-Lube (Silicone).

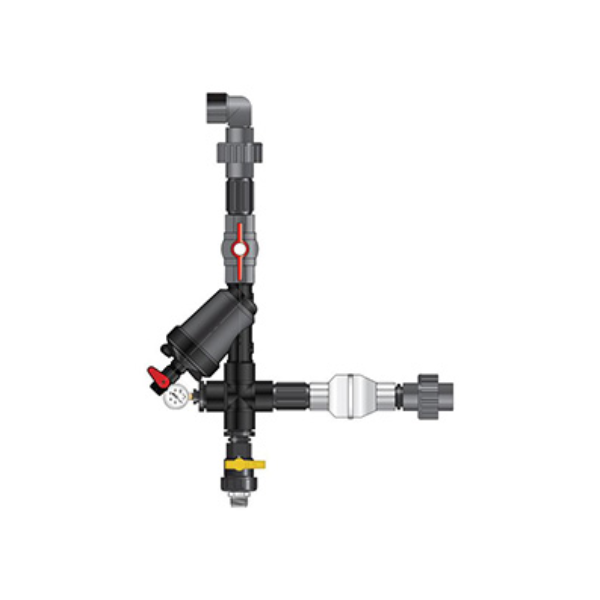

• Includes all necessary parts for the inlet of your Nutrient Delivery System.
• Best suited for systems with consistent inlet pressure or a constant pressure pump.
• Ideal for use with a booster pump or a pump with VFD control.
• A pressure regulator is recommended for inlet pressures above 85 PSI.

Features: Union, check valve, elbows, nipples, tee, hose adapter, ball valves, coupler, filter, pressure gauge, seal thread tape.

To Complete the Lo-Flo Nutrient Delivery System, you will also need Dosatron Injectors, Mixing Chamber Kit(s), pH/ EC Monitor Kit or END Kit, and a Water Hammer Arrestor Kit.
