LightEnerG

• Extremely efficient low-heat horticultural lighting system.
• T5 Super High Output (SHO) lighting provides an ideal spectrum for plant growth.
• Minimal heat output allows placement 6 to 8 in (15.24 to 20.32 cm) above plant canopy.
• No risk of scorching leaves, unlike MH lighting.
• Closer placement maximizes photosynthetic response and promotes fuller growth at lower wattage.
• Includes T5 SHO grow bulbs, built-in ballast, hanging hardware, and 12-foot (3.7-meter) grounded power cord.
• Two-year rebuild or replace warranty.
• ETL approved.
• Dimensions (L x W x H): 4 ft x 9 in x 3 in (122 x 23 x 7.6 cm).

• Extremely efficient low-heat horticultural lighting system.
• T5 Super High Output (SHO) lighting provides an ideal spectrum for plant growth.
• Minimal heat output allows placement 6 to 8 in (15.24 to 20.32 cm) above plant canopy.
• No risk of scorching leaves, unlike MH lighting.
• Closer placement maximizes photosynthetic response and promotes fuller growth at lower wattage.
• Includes T5 SHO grow bulbs, built-in ballast, hanging hardware, and 12-foot (3.7-meter) grounded power cord.
• Two-year rebuild or replace warranty.
• ETL approved.
• Dimensions (L x W x H): 46.2 x 34 x 2.95 in (117 x 86 x 7.5 cm).

• Extremely efficient low-heat horticultural lighting system.
• T5 Super High Output (SHO) lighting provides an ideal spectrum for plant growth.
• Minimal heat output allows placement 6 to 8 in (15.24 to 20.32 cm) above plant canopy.
• No risk of scorching leaves, unlike MH lighting.
• Closer placement maximizes photosynthetic response and promotes fuller growth at lower wattage.
• Includes T5 SHO grow bulbs, built-in ballast, hanging hardware, and 12-foot (3.7-meter) grounded power cord.
• Two-year rebuild or replace warranty.
• ETL approved.
• Dimensions (L x W x H): 2 ft x 9 in x 3 in (60 x 23 x 7.6 cm).

• Extremely efficient low-heat horticultural lighting system.
• T5 Super High Output (SHO) lighting provides an ideal spectrum for plant growth.
• Minimal heat output allows placement 6 to 8 in (15.24 to 20.32 cm) above plant canopy.
• No risk of scorching leaves, unlike MH lighting.
• Closer placement maximizes photosynthetic response and promotes fuller growth at lower wattage.
• Includes T5 SHO grow bulbs, built-in ballast, hanging hardware, and 12-foot (3.7-meter) grounded power cord.
• Two-year rebuild or replace warranty.
• ETL approved.
• Dimensions (L x W x H): 2 ft x 14.5 in x 3 in (60 x 37 x 7.6 cm).

• Extremely efficient low-heat horticultural lighting system.
• T5 Super High Output (SHO) lighting provides an ideal spectrum for plant growth.
• Minimal heat output allows placement 6 to 8 in (15.24 to 20.32 cm) above plant canopy.
• No risk of scorching leaves, unlike MH lighting.
• Closer placement maximizes photosynthetic response and promotes fuller growth at lower wattage.
• Includes T5 SHO grow bulbs, built-in ballast, hanging hardware, and 12-foot (3.7-meter) grounded power cord.
• Two-year rebuild or replace warranty.
• ETL approved.
• Dimensions (L x W x H): 2 ft x 25.5 in x 3 in (60 x 65 x 7.6 cm).

• Designed to be used with LightEnerG Pro Light T5 HO Kits.
• Cost-efficient bulbs ideal for starting plants from seeds or cuttings.
• Can be used to add extra light during the fruiting and flowering stage.

• Designed to be used with LightEnerG Pro Light T5 HO Kits.
• Cost-efficient bulbs ideal for starting plants from seeds or cuttings.
• Can be used to add extra light during the fruiting and flowering stage.

• UL approved magnetic ballast.
• Specialized switch for changing between MH and HPS bulbs.
• Switch between 120 V and 240 V power.

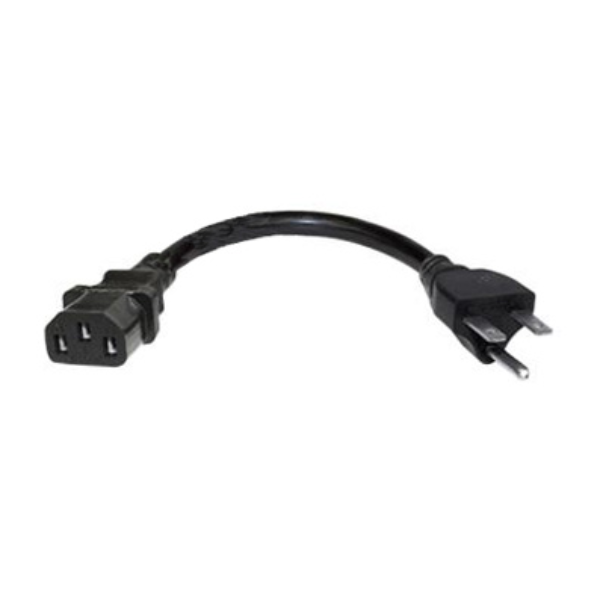

• 8-foot (2.4 m) 240 V power cord included.

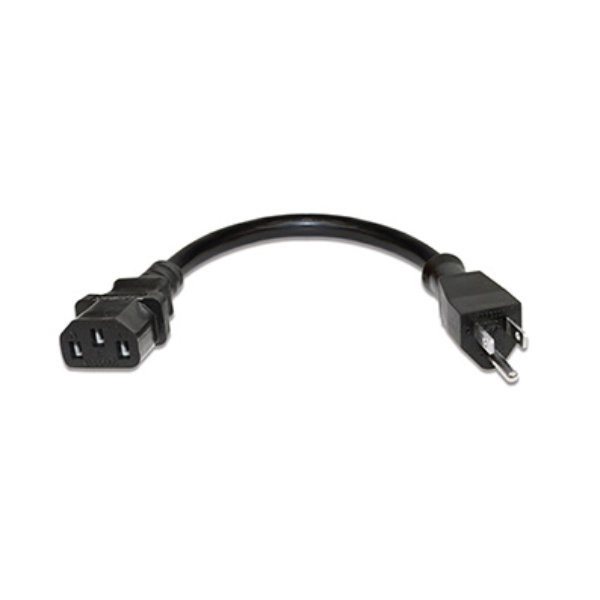

• 120 V power cord available separately.
• No additional wiring needed.

• 1,000 watt magnetic ballast.
• Can easily switch between MH and HPS bulbs by flipping a specialized switch.
• Can also be switched between four primary input voltages: 120 V, 208 V, 240 V or 277 V.
• The aluminum housing is specially designed to dissipate heat and keep components cool.
• Top of the line Aerovox® capacitor is also included.
• Use the 120 V or 240 V power cord (sold separately) to change between these two voltages.
• If 208 V or 277 V operation is required the wiring must be changed by a certified electrician.
• The lamp cord receptacle accepts all LightEnerG™ lamp cords and reflectors.
• UL approved.

• 400 watt magnetic ballast.
• Can easily switch between MH and HPS bulbs by flipping a specialized switch.
• Also switchable between 120 V and 240 V.
• Use provided 120 V cord or 240 V cord (sold separately).
• No additional wiring is necessary.
• The aluminum housing dissipates heat and keeps components cool.
• Includes a top-of-the-line Aerovox® capacitor.
• Lamp cord receptacle accepts all LightEnerG lamp cords and reflectors.

• Magnetic ballast capable of switching between 120 V and 240 V.
• Use either the 120v or a 240v power cord (sold separately) to change the voltage of the ballast.
• No additional wiring is necessary.
• Can also be used with 600 W MH conversion lamps.
• Aluminum housing is specially designed to dissipate heat and keep components cool.
• Includes a top-of-the-line Aerovox® capacitor.
• Lamp cord receptacle accepts all LightEnerG lamp cords and reflectors.

• Magnetic ballast capable of switching between 120 V and 240 V.
• Use either the 120v or a 240v power cord (sold separately) to change the voltage of the ballast.
• No additional wiring is necessary.
• Can also be used with 600 W MH conversion lamps.
• Aluminum housing is specially designed to dissipate heat and keep components cool.
• Includes a top-of-the-line Aerovox® capacitor.
• Lamp cord receptacle accepts all LightEnerG lamp cords and reflectors.

• Magnetic ballast features specialized switch to easily flip between MH and HPS lamps.
• Can run on 120 V or 240 V.
• Pre-assembled: No additional wiring is necessary.
• Galvanized steel construction.
• Top of the line Aerovox® capacitor included.
• Cord receptacle accepts all LightEnerG lamp cords and reflectors.
• Super duty handles.
• Rubber base supports for increased heat dissipation and noise dampening.
• Includes 15-foot (4.6-meter) lamp wire and 6-foot power cord (120 V).
• 240 V power cord sold separately.

• UL certified ballast unit.
• North American made capacitor.
• Quad-tap (120 V, 208 V, 240 V, and 277 V).
• Must be assembled by a qualified electrician.
• Only for use with HPS bulbs.

• UL certified ballast unit.
• North American made capacitor.
• Quad-tap (120 V, 208 V, 240 V, and 277 V).
• Must be assembled by a qualified electrician.
• Only for use with MH bulbs.

15 amp / 250 volt replacement fuse for The ACE™ Digital Ballast.

10 amp / 250 volt replacement fuse for The ACE™ Digital Ballast.

6.3 amp / 250 volt replacement fuse for The ACE™ Digital Ballast.

• State-of-the-art, UL-approved electronic ballast.
• Compatible with both MH and HPS bulbs.
• Features a dimmable switch with the ability to adjust watt output for three different settings.
• Has carefully arranged circuit boards and stainless steel ball bearing fans.
• Runs 15% cooler than standard ballasts, ensuring longer life and improved performance.
• Generator-ready with the most stable output frequency of any comparable ballast.
• Results in lower power loss and better overall power management.
• Has a power factor of 99.9% for 100% of the time.
• Far more efficient than older core and coil ballasts.
• Wattage: 1,000 W.

• State-of-the-art, UL-approved electronic ballast.
• Compatible with both MH and HPS bulbs.
• Features a dimmable switch with the ability to adjust watt output for three different settings.
• Has carefully arranged circuit boards and stainless steel ball bearing fans.
• Runs 15% cooler than standard ballasts, ensuring longer life and improved performance.
• Generator-ready with the most stable output frequency of any comparable ballast.
• Results in lower power loss and better overall power management.
• Has a power factor of 99.9% for 100% of the time.
• Far more efficient than older core and coil ballasts.
• Wattage: 600 W.

• State-of-the-art, UL-approved electronic ballast.
• Compatible with both MH and HPS bulbs.
• Features a dimmable switch with the ability to adjust watt output for three different settings.
• Has carefully arranged circuit boards and stainless steel ball bearing fans.
• Runs 15% cooler than standard ballasts, ensuring longer life and improved performance.
• Generator-ready with the most stable output frequency of any comparable ballast.
• Results in lower power loss and better overall power management.
• Has a power factor of 99.9% for 100% of the time.
• Far more efficient than older core and coil ballasts.
• Wattage: 400 W.

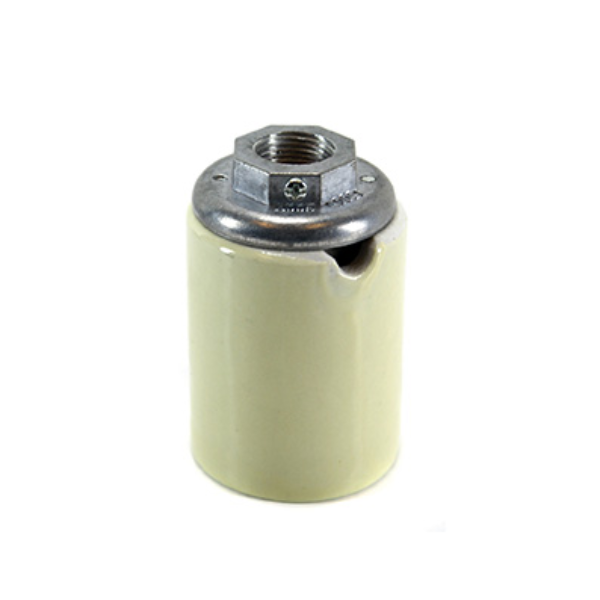

• Premium 600 V, 1500 W, 5KV-pulse-rated porcelain mogul base sockets.
• Accommodate all mogul base bulbs in a universal position.
• Mogul cap and washer are included.

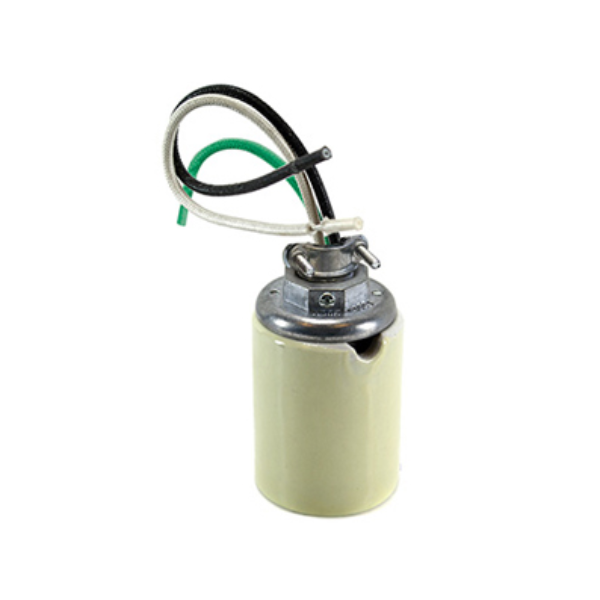

• Premium 600 V, 1500 W, 5KV-pulse-rated porcelain mogul base sockets.
• Accommodate all mogul base bulbs in a universal position.
• Mogul cap, washer, and leads are included.

• Fastest and easiest way to secure a lamp cord to mogul sockets.
• Offer improved strain relief and mechanical structure for wire terminations.
• Extend cable flex life.
• Mogul socket and wire are not included.

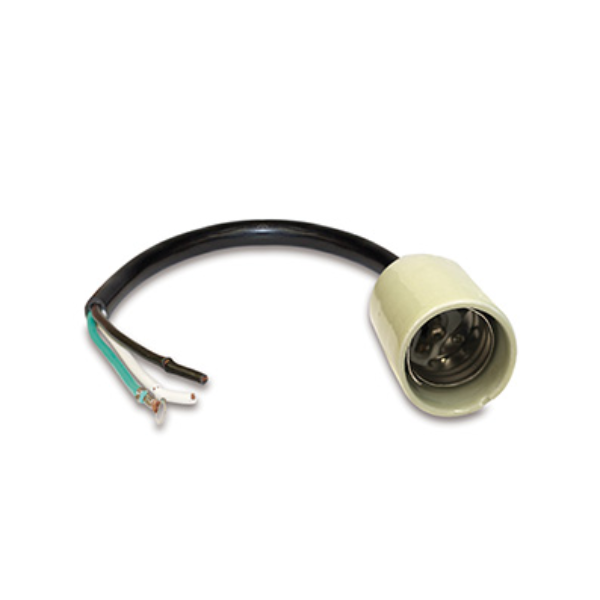

• Comes with a universal position mogul socket.
• Lamp cord includes LightEnerG wire strain relief for added durability.
• Bare wire end.
• Gauge: 14/3.
• Voltage: 300 V.
• Length: 15 feet (4.5 meters).

• Comes with a universal position mogul socket.
• Mounted to an engineered and modified powder-coated octagonal wire box with a hanger.
• Lamp cord includes a LightEnerG Wire Strain Relief for added durability.
• Plug the male end into a LightEnerG ballast and add the appropriate lamp and reflector.
• Gauge: 14/3.
• Voltage: 300 V.

• Comes with a universal position mogul socket.
• Mounted to an engineered and modified powder-coated octagonal wire box with a hanger.
• Lamp cord includes a LightEnerG Wire Strain Relief for added durability.
• Plug the male end into a LightEnerG ballast and add the appropriate lamp and reflector.
• Gauge: 16/3.
• Voltage: 600 V.

• Comes with a universal position mogul socket with a hanger.
• Lamp cord includes LightEnerG wire strain relief for added durability.
• Gauge: 14/3.
• Voltage: 300 V.
• Length: 15 feet (4.5 meters).
