Irrigation & Water Management

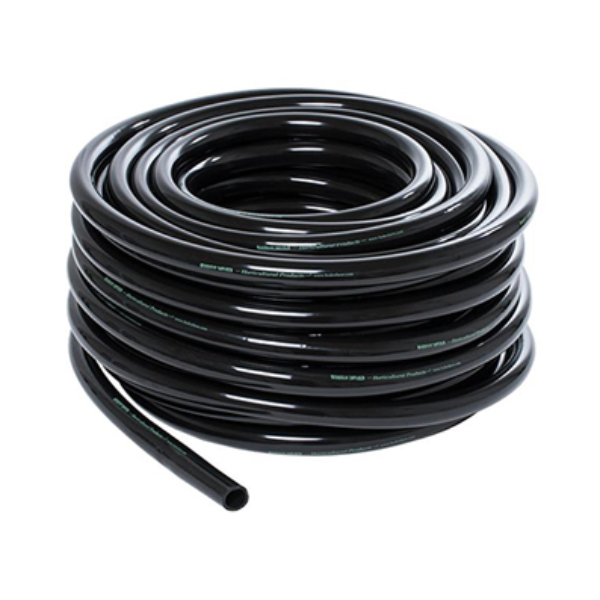

Premium vinyl tubing made of excellent quality. Made in the USA.

Premium vinyl tubing made of excellent quality. Made in the USA.

Premium vinyl tubing made of excellent quality. Made in the USA.

Premium vinyl tubing made of excellent quality. Made in the USA.

Hydro Flow® 6 in holding stake works great for securing tubing between 1/8 in-1/4 in.

The Hydro Flow® Rain Ring® is a great solution for automating your garden. Its versatility allows you to effectively water soil as well as hydroponic growing media without using small irrigation lines and drip stakes. The Rain Ring® has several strategically positioned distribution holes to fully moisten your grow media. Its heavy duty construction allows them to be used indoors under HID lighting and in full sun outdoor applications. Soak and rinse between cycles for years of trouble free use. Built-in 1/2 in barbed fitting.

• Excellent ultra-violet (UV) resistance.
• Reflective and completely opaque to prevent algae growth.
• Withstands heat, direct sun and harsh chemicals.
• Produces cooler water temperatures enhancing plant growth.
• 1 inch polyethylene tubing (1.06 in ID x 1.20 in OD).
• 100 feet (30 meters).

• Unique flow channel directs water into the container.
• Pointed end allows for easy insertion into media.
• Designed for use with Super Flex UV PE Tubing (#Q100705).

• 1.74 psi internal check valve prevents low emitter drainage, holding back up to a 3.9-foot column of water.
• Reduces the risk of contaminants being drawn into the emitter.
• Pressure compensating design ensures consistent flow from 10.15 to 58 psi.
• Exclusive TurboNet® flow path for regulated flow and continuous self-cleaning action.
• Sharp barb allows for easy installation with no tools required.

• Reduces setup time considerably.
• Includes a 3.2 GPH pressure-compensating emitter with CNL check valve.
• Comes with 36 inches of Super Flex Tubing.
• Minimum operating pressure: 22 PSI.
• Pair with Netafim single pattern standard spray stakes (#Q102455).

• Ideal injector for common liquid fertilizer programs.
• Dilution Range: 1:1000 - 1:100 (0.1% to 1%).
• Ratio Range mL: 3.75 to 37.5 mL.
• Ratio Range tsp: 0.75 to 7.5 tsp.
• Water Flow Range: 0.05 to 14 GPM.
• Operating Pressure Range: 4.3 to 85 PSI.
• Dimensions: 19 1/18″ x 6 5/16″.
• Weight: 6 lbs.
• Connection Size: 3/4″ NPT.
• Maximum Temperature: 104° F.
• Higher flow rates and greater chemical compatibility compared to existing technology.
• Easy installation; can be adapted to new or existing Lo-Flo Nutrient Delivery Systems.
• Extended dosing range achieved by swapping out the injection stem and plunger assembly.

• Ideal injector for common liquid fertilizer programs.
• Dilution Range: 1:1000 - 1:100 (0.1% to 1%).
• Water Flow Range: 2.2 to 40 GPM.
• Operating Pressure Range: 4.3 to 116 PSI.
• Dimensions: 125 1/4″ x 8 1/2″.
• Weight: 6 lbs.
• Connection Size: 1.5″ NPT.
• Maximum Temperature: 104°F.
• Higher flow rates and greater chemical compatibility compared to existing technology.
• Easy installation; can be adapted to new or existing Hi-Flo Nutrient Delivery Systems.
• Extended dosing range achieved by swapping out the injection stem and plunger assembly.

• Includes all necessary parts for the inlet of your Nutrient Delivery System.
• Best suited for systems with consistent inlet pressure or a constant pressure pump.
• Ideal for use with a booster pump or a pump with VFD control.
• A pressure regulator is recommended for inlet pressures above 85 PSI.

Features: Union, check valve, elbows, nipples, tee, hose adapter, ball valves, coupler, filter, pressure gauge, seal thread tape.

To Complete the Lo-Flo Nutrient Delivery System, you will also need Dosatron Injectors, Mixing Chamber Kit(s), pH/ EC Monitor Kit or END Kit, and a Water Hammer Arrestor Kit.

The Dosatron® Water-Powered Nutrient Delivery System Mixing Chamber Kit enhances the blending as the solution passes through. It’s a must for silicates.

Includes:

• Union.
• Mixing chamber.
• Nipples.
• Seal thread tape.

Light blocking mixing chamber sunshade for Dosatron® 3/4" mixing chambers. Prevents the light from impacting nutrient rich water, eliminating the potential for biofilm and algae growth in the chamber. Removable cover for the clear bowl portion of the mixing chamber.

Dosatron®'s Water-Powered Nutrient Delivery System Lo-Flo Monitor Kit measures and displays the well-blended outgoing solution providing peace of mind.

Features: Union, close nipples, nipples, tee, pressure gauge, pressure gauge tee, cross, check valve, fittings, ball valves, hose adapter, monitor, probe holder assembly, and seal thread tape.

• 3/4 inch water hammer arrestor kit.
• Normal operating pressure - 35 to 500 psi.
• Spike pressure not to exceed 2,000 psi.

Features: stainless steel water hammer arrestor, 4-inch nipple, tee, elbow, close nipple, union, and a roll of thread seal tape.

Extend the life of your Dosatron® D14MZ2 - 14 GPM and D14MZ2-HY with Dosatron's Rebuild Kit.

Two-Part Kit Includes:

• Part 1: piston kit contents
• Part 2: seal kit contents, complete, detailed instructions

Injection seal kit for the Dosatron® D14MZ2 - 14 GPM. Recommended for a yearly maintenance.

Kit Includes:

• Injection sleeve o-ring.
• Check valve assembly.
• Injection stem o-ring.
• Plunger seal.

Mini maintenance kit for the Dosatron® D14MZ2 - 14 GPM. Recommended for a regular maintenance.

Kit Includes:

• Plunger seal.
• Top guide.
• Check valve cone.
• Check valve spring.
• Check valve cone o-ring.
• Dosa-Lube (Silicone).

Injection seal kit with AFLAS seals for the Dosatron® D14MZ3000 - 14 GPM.

Kit Includes:

• Injection sleeve o-ring.
• Check valve assembly.
• Injection stem o-ring.
• Plunger with seal.

Injection seal kit with Viton seals for the D14MZ3000 - 14 GPM .

Kit Includes:

• Injection sleeve o-ring.
• Check valve assembly.
• Injection stem o-ring.
• Plunger with seal.

Mini maintenance kit for the Dosatron® D14MZ3000 and D14TMZ3000 - 14 GPM.

Kit Includes:

• Plunger seal.
• Upper check valve assembly.
• Dosa-Lube (Silicone).

Mini maintenance kit for the Dosatron® D14MZ3000 and D14TMZ3000 - 14 GPM.

Kit Includes:

• Plunger seal.
• Upper check valve assembly.
• Dosa-Lube (Silicone).

• Tank Size: 5 gallons (19 liters).
• Cart Construction: Polyethylene.
• Cart Dimensions (L x W x H): 22 x 19 x 44.5 in (55.9 x 48.3 x 113 cm).
• Tire Size: 10 in (25.4 cm) no-flat tires.
• Includes 5-gallon (19 liter) bucket with lid.
• Dosatron doser not included.
