Irrigation & Water Management

SPECIAL ORDER

• CNL Junior PC drip emitter.
• 2-litre-per-hour dripper.
• 24 inch (68.6 centimeter) Superflex white PE tube.
• 45° angle spike

Replacement part for Dosatron® D14MZ2/D14MZ1000.

• Engineered for use with Stealth-RO™ 150 Systems.
• Regulates water flow during the flushing process.
• Maintains precise control to optimize system performance.
• Enhances efficiency and effectiveness of filtration.
• Provides reliable operation with seamless system integration.
• Essential for consistent, high-quality water output.

• Ideal for reliable and consistent dosing in greenhouse, horticultural, boom and industrial applications.
• Dilution Range: 1:500 to 1:50 (0.2% to 2%)
• Water Flow Range: 0.44 to 26 GPM
• Operating Pressure Range: 4.3 to 116 PSI
• Dimensions (LxWxH): 25 x 9 x 8 in (63.5 × 22.86 × 20.32 cm)
• Weight: 6 lbs (2.72 kg)
• Connection Size: 1 1/4 in NPT
• Maximum Temperature: 104°F

• Engineered specifically for indoor home grows with an average of 4 to 24 lights or 12 to 96 plants.
• Flow Rates: 0.5 to 5 GPM (1.89 to 18.9 LPM)
• Pressure Range: 35 – 87 psi (2.5 - 6 BAR)
• Connection Size: ¾ inch inlet / outlet
• Dosing Range %: 0.05 - 0.5
• Dosing Range mL/gallon: 1.875 - 18.75 mL/G
• Dosing Range Ratio: 1:2000 to 1:200
• Maximum Temperature: 104 F (40 C)
• System Weight: 14.5 lb (6.585 kg)
• Spare Unit Weight: 2.5 lb (1.15 kg)
• Assembled System Dimensions: 11.81 L x 12.4 W x 17.72 H in (L 300 x l 315 x H 450 mm)
• Max Dosing Unit Dimensions: 6.3 L x 5.26 W x 13.58 H in (L 160 x l 133.5 x H 345 mm)
• Included Accessories: Mounting bracket, suction hose, weighted strainer, union connections and quick start guide.

• Ideal for reliable and consistent dosing in greenhouse, horticultural, boom and industrial applications.
• Dilution Range: 1:500 to 1:50 (0.2% to 2%)
• Water Flow Range: 0.44 to 26 GPM
• Operating Pressure Range: 4.3 to 116 PSI
• Dimensions (LxWxH): 25 x 9 x 8 in (63.5 × 22.86 × 20.32 cm)
• Weight: 6 lbs (2.72 kg)
• Connection Size: 1 1/4 in NPT
• Maximum Temperature: 104°F

• Fitting kit for the Hydro-Logic® Evolution RO1000™.
• Replacement parts.

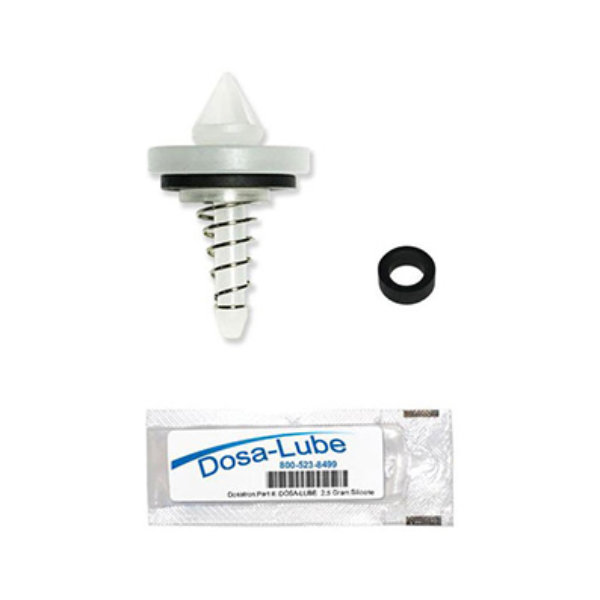

Replacement plunger seal for Dosatron® models D14MZ2, DM11F, D45RE15, D25RE2, and D25F.

Hydro Flow® 6 in holding stake works great for securing tubing between 1/8 in-1/4 in.

• Excellent ultra-violet (UV) resistance.
• Reflective and completely opaque to prevent algae growth.
• Withstands heat, direct sun and harsh chemicals.
• Produces cooler water temperatures enhancing plant growth.
• Solid opaque white.
• 1/5 inch (5 mm) polyethylene tubing.
• 1,000 feet (305 m).

• Excellent ultra-violet (UV) resistance.
• Reflective and completely opaque to prevent algae growth.
• Withstands heat, direct sun and harsh chemicals.
• Produces cooler water temperatures enhancing plant growth.
• 1 inch polyethylene tubing (1.06 in ID x 1.20 in OD).
• 100 feet (30 meters).

• Excellent ultra-violet (UV) resistance.
• Reflective and completely opaque to prevent algae growth.
• Withstands heat, direct sun and harsh chemicals.
• Produces cooler water temperatures enhancing plant growth.
• 17 millimeter polyethylene tubing (0.560 in ID x 0.660 in OD).
• 500 feet (152 meters).

• Excellent ultra-violet (UV) resistance.
• Reflective and completely opaque to prevent algae growth.
• Withstands heat, direct sun and harsh chemicals.
• Produces cooler water temperatures enhancing plant growth.
• 3/4 inch polyethylene tubing (.82 in ID x .94 in OD).
• 100 feet (30 meters).

• Installs directly where needed for precise irrigation.
• Reduces setup time considerably.
• Features a 0.5 GPH pressure-compensating emitter with CNL check valve.
• Includes 36 inches (91 cm) of Super Flex Tubing.
• Comes with an angled barbed stake for secure placement.
• Requires a minimum operating pressure of 10 psi.

• Installs directly where needed for precise irrigation.
• Reduces setup time considerably.
• Features a 0.5 GPH pressure-compensating emitter with CNL check valve.
• Includes 48 inches (122 cm) of Super Flex Tubing.
• Comes with an angled barbed stake for secure placement.
• Requires a minimum operating pressure of 10 psi.

• Simple to operate and maintain.
• Reliable even in harsh conditions.
• Tight sealing valve with fully supported diaphragm.
• 1 inch flow range is 0.01 - 44 GPM.

• Features crisscrossed grooves in disc rings for effective debris trapping.
• As pressure increases, disc rings compress tightly, forcing water through the grooves.
• Debris is trapped within the disc rings, ensuring only clean water flows into the irrigation system.
• Operates efficiently with flow rates from 1 - 12 GPM.

• Reduces setup time considerably.
• Includes a 3.2 GPH pressure-compensating emitter with CNL check valve.
• Comes with 36 inches of Super Flex Tubing.
• Minimum operating pressure: 22 PSI.
• Pair with Netafim single pattern standard spray stakes (#Q102455).

• Pressure-compensating device.
• Delivers water to multiple locations.
• Features a 1/2-inch FPT inlet and 8 swivel-port 3/16-inch outlets.
• Includes built-in backflow prevention for added protection.
• Optional port plugs available for unused ports.
• Flow rate: 10 GPH.
• Pressure compensation range: 20–60 PSI.
• Constructed using durable ABS plastic.

Hydro Flow® single grip hose clamps provide a superior seal on hose or tubing. As interlocking teeth are pushed together the sealing diameter closes evenly creating a uniform clamping surface. These clamps can be removed by separating the clamping halves in a perpendicular direction at the seal. The black nylon clamps won't corrode or rust and installation and removal requires no tools.

Premium vinyl tubing made of excellent quality. Made in the USA.

These grommets can be used to replace old, worn top hat grommets in your hydroponic system and can be a valuable solution when building your own garden system. Top Hat grommets have a straight side wall for easy installation. When the fitting is inserted into the grommet, the wall is pushed against the whole surface to create the seal.

Use these high quality barbed 1/2 in connectors for your irrigation systems or hydroponic systems. Feature 4 barbs for a tight fit. Bump stop assures fittings are completely and securely inserted in tubing.
