Netafim

• Unique design regulates flow and provides continuous self-cleaning action.
• Features a 2.2 PSI internal check valve that prevents low emitter drainage, holding back up to a 5-foot column of water.
• Anti-siphon operation prevents contaminants from entering the emitter.
• Pressure compensating, ensuring consistent flow from 14.5 to 58 PSI.
• Recommended minimum filtration of 120 mesh.
• Compatible with 36" or 48" 2-way (#Q102463 / #Q102464) or 4-way (#Q112852 / #Q112853) Dripper Stake Assemblies.

• Unique design regulates flow and provides continuous self-cleaning action.
• Features a 2.2 PSI internal check valve that prevents low emitter drainage, holding back up to a 5-foot column of water.
• Anti-siphon operation prevents contaminants from entering the emitter.
• Pressure compensating, ensuring consistent flow from 14.5 to 58 PSI.
• Recommended minimum filtration of 120 mesh.
• Compatible with 36" or 48" 2-way (#Q102463 / #Q102464) or 4-way (#Q112852 / #Q112853) Dripper Stake Assemblies.

• Unique design regulates flow and provides continuous self-cleaning action.
• Features a 2.2 PSI internal check valve that prevents low emitter drainage, holding back up to a 5-foot column of water.
• Anti-siphon operation prevents contaminants from entering the emitter.
• Pressure compensating, ensuring consistent flow from 14.5 to 58 PSI.
• Recommended minimum filtration of 120 mesh.
• Compatible with 36" or 48" 2-way (#Q102463 / #Q102464) or 4-way (#Q112852 / #Q112853) Dripper Stake Assemblies.

• Multi-Outlet Dripper (MOD) supports multiple drip stake assemblies from a single drip emitter.
• Preassembled with a two-way flat manifold, two 36 - or 48-inch UV Polyethylene Tubing leads, and two 6 3/8-inch standard Angle Arrow Drippers.
• Compatible with the Netafim 1 GPH (Q112854) or 2 GPH (Q102461) Techflow Emitters.

• Multi-Outlet Dripper (MOD) supports multiple drip stake assemblies from a single drip emitter.
• Preassembled with a two-way flat manifold, two 36-inch UV Polyethylene Tubing leads, and two 6 3/8-inch standard Angle Arrow Drippers.
• Compatible with the Netafim 1 GPH (Q112854) or 2 GPH (Q102461) Techflow Emitters.

• Multi-Outlet Dripper (MOD) supports multiple drip stake assemblies from a single drip emitter.
• Preassembled with a two-way flat manifold, two 48-inch UV Polyethylene Tubing leads, and two 6 3/8-inch standard Angle Arrow Drippers.
• Compatible with the Netafim 1 GPH (Q112854) or 2 GPH (Q102461) Techflow Emitters.

• Simple to operate and maintain.
• Reliable even in harsh conditions.
• Tight sealing valve with fully supported diaphragm.
• Flow range: 0.25 - 110 GPM

• Features crisscrossed grooves in disc rings for effective debris trapping.
• As pressure increases, disc rings compress tightly, forcing water through the grooves.
• Debris is trapped within the disc rings, ensuring only clean water flows into the irrigation system.
• Operates efficiently with flow rates from 10 to 52 GPM.

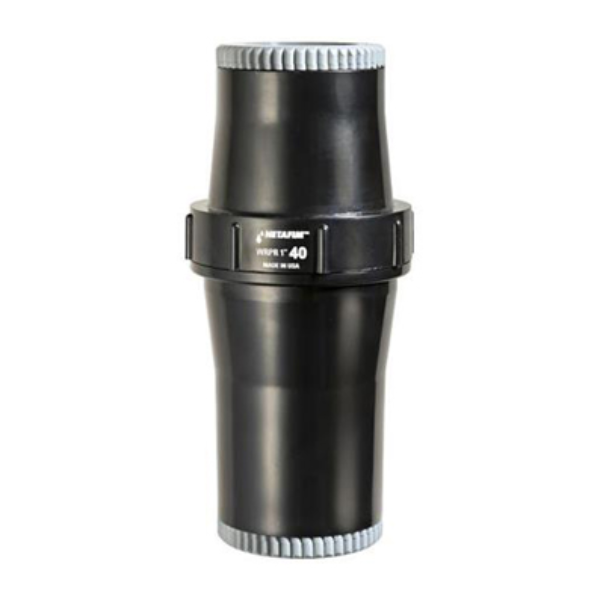

• The only 1-inch regulator in the industry rated from 0.5 to 35 GPM.
• Constructed with high-strength ABS and stainless steel springs for long-lasting durability.
• Features a rolling diaphragm and sealed regulating chamber for consistent performance.
• Suitable for various applications in any irrigation system.
• Operating inlet pressure range: 30 to 150 PSI.

• The only 1-inch regulator in the industry rated from 0.5 to 35 GPM.
• Constructed with high-strength ABS and stainless steel springs for long-lasting durability.
• Features a rolling diaphragm and sealed regulating chamber for consistent performance.
• Suitable for various applications in any irrigation system.

• The only 1-inch regulator in the industry rated from 0.5 to 35 GPM.
• Constructed with high-strength ABS and stainless steel springs for long-lasting durability.
• Features a rolling diaphragm and sealed regulating chamber for consistent performance.
• Suitable for various applications in any irrigation system.

The Netafim™ Punch Tool is a heavy duty plastic handle punch that makes adding any Netafim drippers to your irrigation system easy and convenient.

Did you goof? Use the Netafim™ Goof Plug to repair dripper holes that were accidentally punched in error.

• Equipped with a barbed outlet and CNL check valve to prevent low emitter drainage.
• Anti-siphon operation keeps contaminants from entering the emitter.
• Pressure compensating design ensures consistent flow from 12 - 58 PSI.
• Compatible with Netafim Super Flex UV White PE Tubing (#Q100705).

• Equipped with a barbed outlet and CNL check valve to prevent low emitter drainage.
• Anti-siphon operation keeps contaminants from entering the emitter.
• Pressure compensating design ensures consistent flow from 12 - 58 PSI.
• Compatible with Netafim Super Flex UV White PE Tubing (#Q100705).

• Equipped with a barbed outlet and CNL check valve to prevent low emitter drainage.
• Anti-siphon operation keeps contaminants from entering the emitter.
• Pressure compensating design ensures consistent flow from 12 - 58 PSI.
• Compatible with Netafim Super Flex UV White PE Tubing (#Q100705).

• Equipped with a barbed outlet and CNL check valve to prevent low emitter drainage.
• Anti-siphon operation keeps contaminants from entering the emitter.
• Pressure compensating design ensures consistent flow from 12 - 58 PSI.
• Compatible with Netafim Super Flex UV White PE Tubing (#Q100705).

• Equipped with a barbed outlet and CNL check valve to prevent low emitter drainage.
• Anti-siphon operation keeps contaminants from entering the emitter.
• Pressure compensating design ensures consistent flow from 12 - 58 PSI.
• Compatible with Netafim Super Flex UV White PE Tubing (#Q100705).

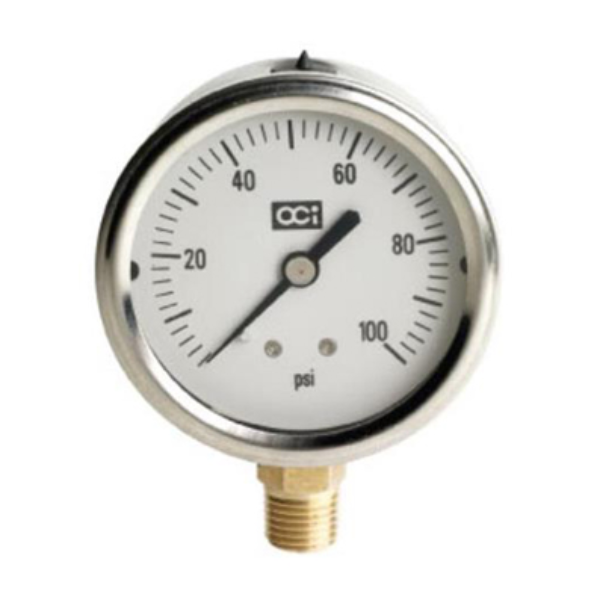

• Measures from 0-100 PSI
• Compatible with Netafim 17 mm Combination Tee (#Q102482)
• Monitor water pressure on the table
• Requires 1/2 x 1/4 inch Schedule 40 TxT reducer

• Instantly responds to pressure variations to maintain a constant 35 PSI outlet pressure.
• Non-corrosive, high-quality plastic bodies withstand commonly used fertilizers and chemicals.
• Sealed regulating unit with a stainless steel spring and screw for easy maintenance and replacement.
• Maximum Operating Pressure: 145 PSI.

• Instantly responds to pressure variations to maintain a constant 35 PSI outlet pressure.
• Non-corrosive, high-quality plastic bodies withstand commonly used fertilizers and chemicals.
• Sealed regulating unit with a stainless steel spring and screw for easy maintenance and replacement.
• Maximum Operating Pressure: 145 PSI.
• GPM: 4.5 - 17.6.

• Instantly responds to pressure variations to maintain a constant 35 PSI outlet pressure.
• Non-corrosive, high-quality plastic bodies withstand commonly used fertilizers and chemicals.
• Sealed regulating unit with a stainless steel spring and screw for easy maintenance and replacement.
• Maximum Operating Pressure: 145 PSI.
• GPM: 0.25 - 4.4.

• Reduces setup time considerably.
• Available in 36-inch or 48-inch assemblies for flexible installation.
• Includes a 3.2 or 6.6 GPH pressure-compensating emitter with CNL check valve.
• Comes with 36 or 48 inches of Super Flex Tubing.
• Minimum operating pressure: 22 PSI.
• 3.2 GPH assemblies pair with Netafim single pattern standard spray stakes (#Q102455).
• 6.6 GPH assemblies pair with Netafim single pattern (#Q102456) or double pattern (#Q102457) standard spray stakes.

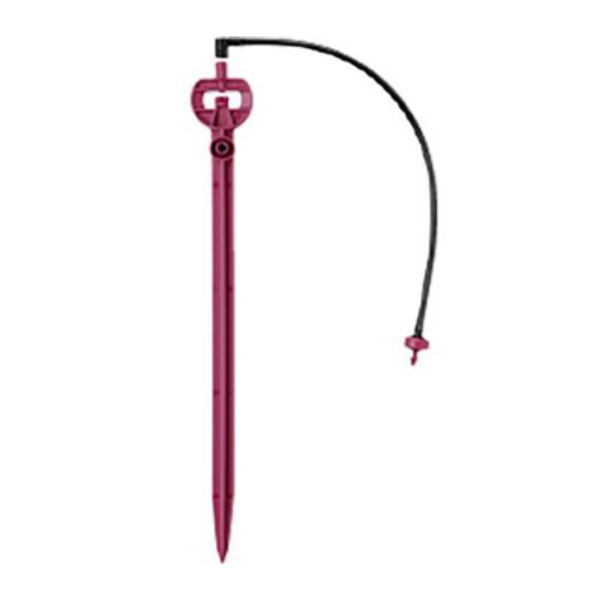

• Reduces setup time considerably.
• Includes a 3.2 GPH pressure-compensating emitter with CNL check valve.
• Comes with 48 inches of Super Flex Tubing.
• Minimum operating pressure: 22 PSI.
• Pair with Netafim single pattern standard spray stakes (#Q102455).

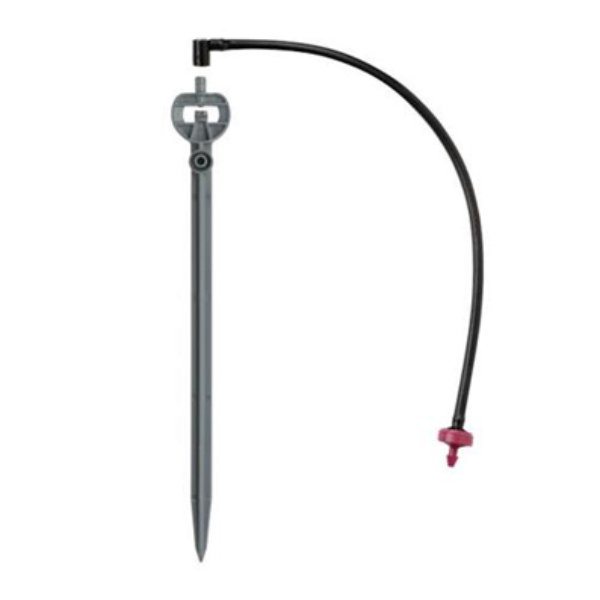

• Reduces setup time considerably.
• Includes a 6.6 GPH pressure-compensating emitter with CNL check valve.
• Comes with 48 inches of Super Flex Tubing.
• Minimum operating pressure: 22 PSI.
• Pair with Netafim single pattern (#Q102456) or double pattern (#Q102457) standard spray stakes.

• Reduces setup time considerably.
• Includes a 6.6 GPH pressure-compensating emitter with CNL check valve.
• Comes with 36 inches of Super Flex Tubing.
• Minimum operating pressure: 22 PSI.
• Pair with Netafim single pattern (#Q102456) or double pattern (#Q102457) standard spray stakes.

• Netafim™ 17 mm Shut-Off Valve
  • Dual 17 mm barbed tubing connectors designed for 17 mm UV Poly Tubing (#Q102449).
  • Can be used as a flush valve or to shut off a table.

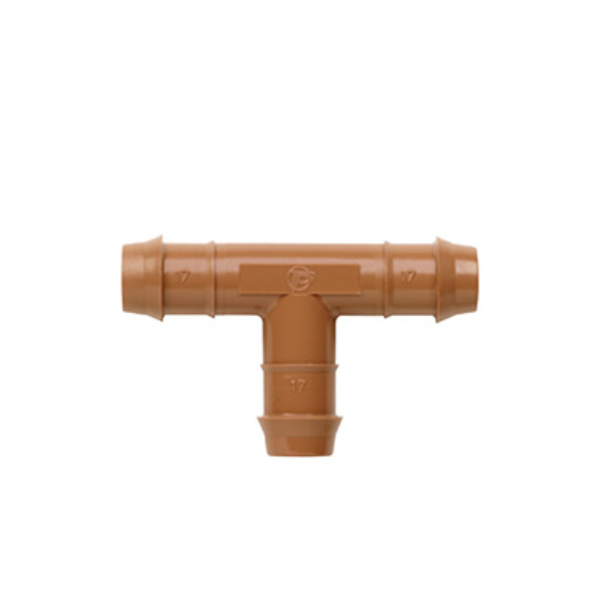

• Netafim™ 17 mm Techline Combination Tee
  • Dual 17 mm barbed tubing connectors designed for 17 mm UV Poly Tubing (#Q102449).
  • Connects to 1/2 inch female pipe thread.
  • Use with the Netafim Liquid Filled Pressure Gauge (#Q102475) to measure water pressure on the table.

• Dual 17 mm barbed tubing connectors designed for 17 mm UV Poly Tubing (#Q102449)
• Easy installation without clamps, glue, or tools
• Tight, leak-proof connection
• Versatile use as a flush valve or to shut off a table

• Dual 17 mm barbed tubing connectors fit the 17 mm UV Poly Tubing (#Q102449).
• Connects to 1/2 inch female pipe thread.
• Easy installation without clamps, glue, or tools for a tight, leak-proof connection.
• Compatible with the Netafim Liquid Filled Pressure Gauge 0 - 100 PSI (#Q102475) for water pressure measurement.
• Note: Requires 1/2 x 1/4 inch schedule 40 TxT reducer.

• Superior clog resistance with Netafim Typhoon™ emitters.
• Four evenly spaced emitters distribute water uniformly for optimal rootzone development.
• Quick action installation: place ring in the container, then connect the pre-cut micro tubing.
• Compatible with 2 - 15 Gallon (10 - 60 liter) containers.
• Diameter: 5 inches (120 millimeters).
• Flow rate: four outlets with flow of 0.53 GPH (2.0 L/h) each at 14.5 psi (1.0 bar).
• Chemical and UV resistance for durability.
• Colored light gray for improved light reflection.
• Max. operating pressure for hub drippers - 58.0 psi (4.0 bars).
