Netafim

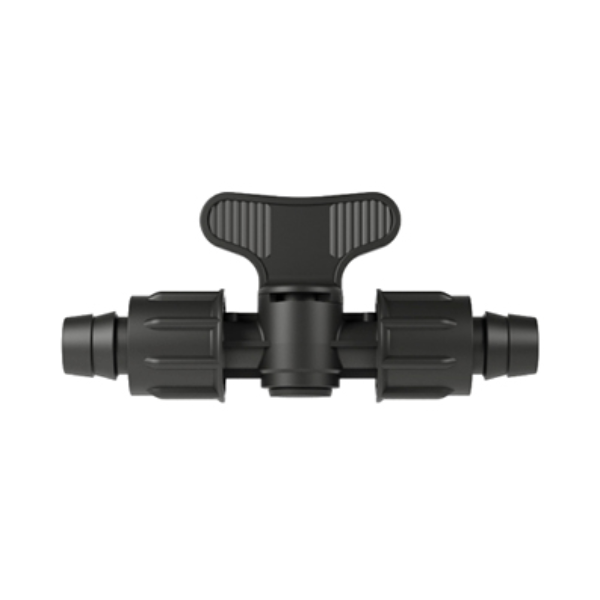

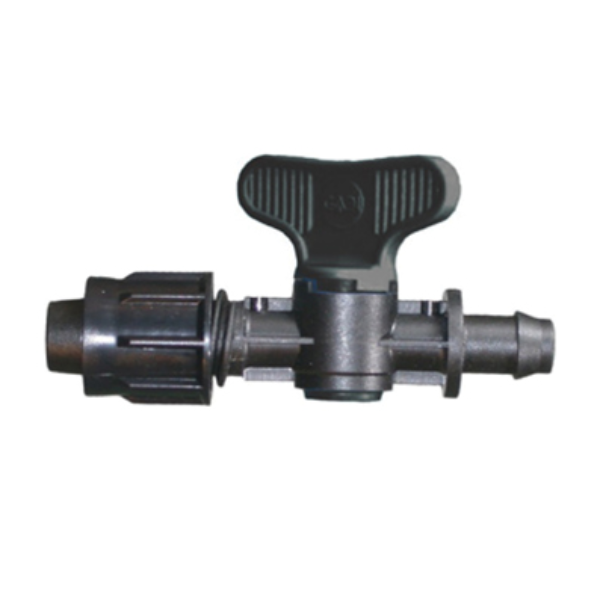

• Dual 17 mm barbed tubing connectors designed for 17 mm UV Poly Tubing (#Q102449)
• Easy installation without clamps, glue, or tools
• Tight, leak-proof connection
• Versatile use as a flush valve or to shut off a table

• Dual 17 mm barbed tubing connectors fit the 17 mm UV Poly Tubing (#Q102449).
• Connects to 1/2 inch female pipe thread.
• Easy installation without clamps, glue, or tools for a tight, leak-proof connection.
• Compatible with the Netafim Liquid Filled Pressure Gauge 0 - 100 PSI (#Q102475) for water pressure measurement.
• Note: Requires 1/2 x 1/4 inch schedule 40 TxT reducer.

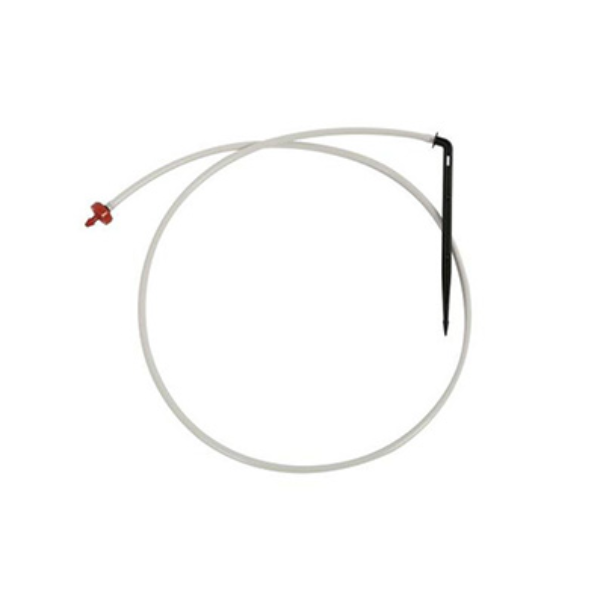

• Installs directly where needed for precise irrigation.
• Reduces setup time considerably.
• Features a 0.5 GPH pressure-compensating emitter with CNL check valve.
• Includes 30 inches (76 cm) of Super Flex Tubing.
• Comes with an angled barbed stake for secure placement.
• Requires a minimum operating pressure of 10 psi.

• Unique design regulates flow and provides continuous self-cleaning action.
• Features a 2.2 PSI internal check valve that prevents low emitter drainage, holding back up to a 5-foot column of water.
• Anti-siphon operation prevents contaminants from entering the emitter.
• Pressure compensating, ensuring consistent flow from 14.5 to 58 PSI.
• Recommended minimum filtration of 120 mesh.
• Compatible with 36" or 48" 2-way (#Q102463 / #Q102464) or 4-way (#Q112852 / #Q112853) Dripper Stake Assemblies.

• Multi-Outlet Dripper (MOD) supports multiple drip stake assemblies from a single drip emitter.
• Preassembled with a two-way flat manifold, two 48-inch UV Polyethylene Tubing leads, and two 6 3/8-inch standard Angle Arrow Drippers.
• Compatible with the Netafim 1 GPH (Q112854) or 2 GPH (Q102461) Techflow Emitters.

• The only 1-inch regulator in the industry rated from 0.5 to 35 GPM.
• Constructed with high-strength ABS and stainless steel springs for long-lasting durability.
• Features a rolling diaphragm and sealed regulating chamber for consistent performance.
• Suitable for various applications in any irrigation system.

• Barb ends fit securely on UV Polyethylene Tubing (#Q102449)
• Techlock threaded caps and compression rings ensure a tight seal
• Operating pressure range: 0 to 100 psi

• Provide consistent water distribution across the entire system.
• Spray pattern angles downward to ensure water lands on the soil, avoiding contact with the pot's wall.
• 'Bow-tie' double-spray pattern.
• Pair with the Netafim 36 inch (#Q102480) or 48 in (#Q102479) single spray stake assembly.

• 1.74 psi internal check valve prevents low emitter drainage, holding back up to a 3.9-foot column of water.
• Reduces the risk of contaminants being drawn into the emitter.
• Pressure compensating design ensures consistent flow from 10.15 to 58 psi.
• Exclusive TurboNet® flow path for regulated flow and continuous self-cleaning action.
• Sharp barb allows for easy installation with no tools required.

• Barb ends fit securely on UV Polyethylene Tubing (#Q102449)
• Techlock threaded caps and compression rings ensure a tight seal
• Operating pressure range: 0 to 100 psi

• Connect poly distribution lines to 5 mm UV Super Flex white polyethylene feed lines.
• Thread connectors into 5 mm tubing for secure attachment.
• Use a hole punch to create a spot for the connector in your poly distribution line.
• Insert the barbed end of the connector into the punched hole for a tight fit.
• Compatible with various water delivery methods, including drip stakes, spray stakes, and button emitters.

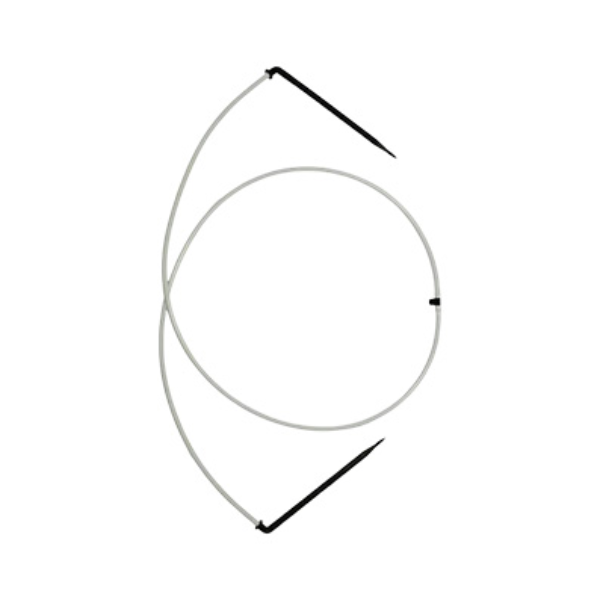

• Multi-Outlet Dripper (MOD) supports multiple drip stake assemblies from a single drip emitter.
• Preassembled with a two-way flat manifold, two 36-inch UV Polyethylene Tubing leads, and two 6 3/8-inch standard Angle Arrow Drippers.
• Compatible with the Netafim 1 GPH (Q112854) or 2 GPH (Q102461) Techflow Emitters.

• Features crisscrossed grooves in disc rings for effective debris trapping.
• As pressure increases, disc rings compress tightly, forcing water through the grooves.
• Debris is trapped within the disc rings, ensuring only clean water flows into the irrigation system.
• Operates efficiently with flow rates from 10 to 52 GPM.

The Netafim™ Punch Tool is a heavy duty plastic handle punch that makes adding any Netafim drippers to your irrigation system easy and convenient.

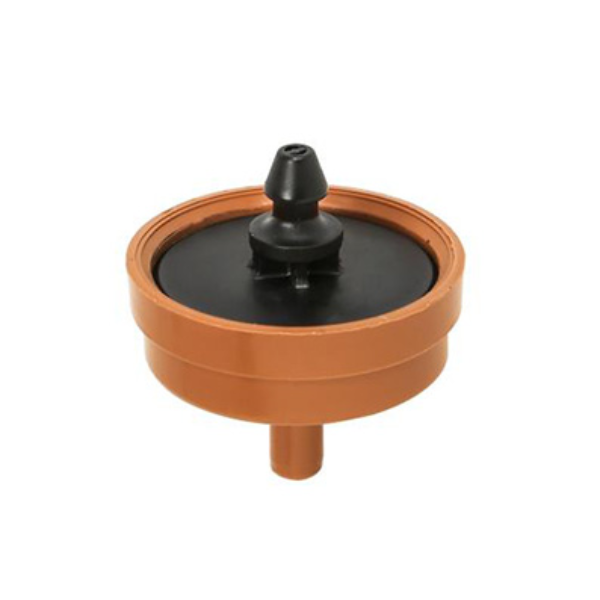

• Equipped with a barbed outlet and CNL check valve to prevent low emitter drainage.
• Anti-siphon operation keeps contaminants from entering the emitter.
• Pressure compensating design ensures consistent flow from 12 - 58 PSI.
• Compatible with Netafim Super Flex UV White PE Tubing (#Q100705).

• Instantly responds to pressure variations to maintain a constant 35 PSI outlet pressure.
• Non-corrosive, high-quality plastic bodies withstand commonly used fertilizers and chemicals.
• Sealed regulating unit with a stainless steel spring and screw for easy maintenance and replacement.
• Maximum Operating Pressure: 145 PSI.
• GPM: 0.25 - 4.4.

• Superior clog resistance with Netafim Typhoon™ emitters.
• Four evenly spaced emitters distribute water uniformly for optimal rootzone development.
• Quick action installation: place ring in the container, then connect the pre-cut micro tubing.
• Compatible with 2 - 15 Gallon (10 - 60 liter) containers.
• Diameter: 5 inches (120 millimeters).
• Flow rate: four outlets with flow of 0.53 GPH (2.0 L/h) each at 14.5 psi (1.0 bar).
• Chemical and UV resistance for durability.
• Colored light gray for improved light reflection.
• Max. operating pressure for hub drippers - 58.0 psi (4.0 bars).

• Pressure compensating with CNL check valve feature.
• Standard with Super Flex UV white PE tubing.

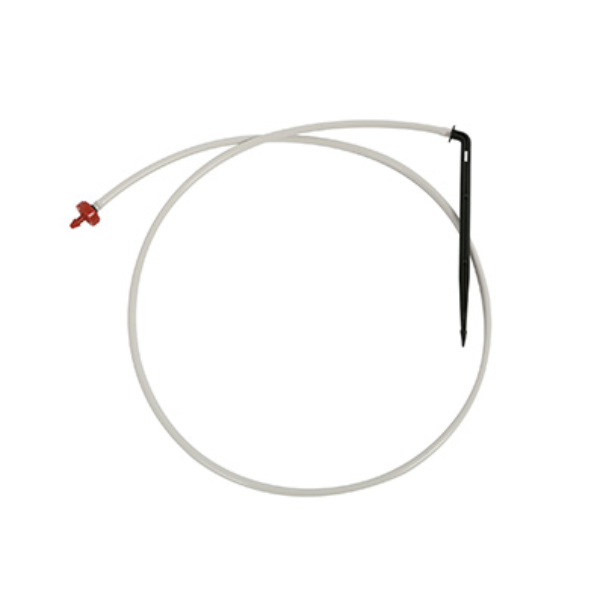

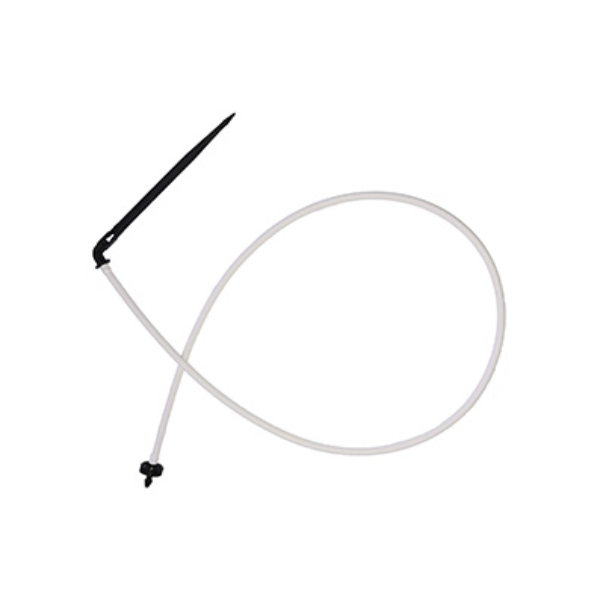

• Installs directly where needed for precise irrigation.
• Reduces setup time considerably.
• Features a 0.5 GPH pressure-compensating emitter with CNL check valve.
• Includes 18 inches (46 cm) of Super Flex Tubing.
• Comes with an angled barbed stake for secure placement.
• Requires a minimum operating pressure of 10 psi.

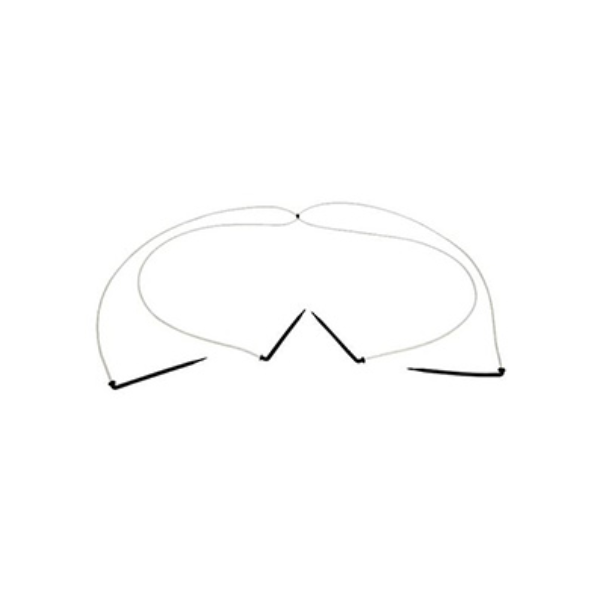

• Netafim 4-Way Dripper Stake Assemblies simplify installation.
• Includes 4-way fitting and angled barbed stakes, preassembled for convenience.
• 36-inch (91.4 cm) lengths of Super Flex UV-protected PE tubing.

• Barb ends fit securely on UV Polyethylene Tubing (#Q102449)
• Techlock threaded caps and compression rings ensure a tight seal
• Operating pressure range: 0 to 100 psi

• Provide consistent water distribution across the entire system.
• Spray pattern angles downward to ensure water lands on the soil, avoiding contact with the pot's wall.
• Single-sided spray stake is ideal for placement near the edge of the pot.
• Alternative option includes Netafim's 'bow-tie' double-spray pattern for different watering needs.
• Pair with the Netafim 36 inch (#Q102480) or 48 in (#Q102479) single spray stake assembly.

• 1.74 psi internal check valve prevents low emitter drainage, holding back up to a 3.9-foot column of water.
• Reduces the risk of contaminants being drawn into the emitter.
• Pressure compensating design ensures consistent flow from 10.15 to 58 psi.
• Exclusive TurboNet® flow path for regulated flow and continuous self-cleaning action.
• Sharp barb allows for easy installation with no tools required.

• Unique design regulates flow and provides continuous self-cleaning action.
• Features a 2.2 PSI internal check valve that prevents low emitter drainage, holding back up to a 5-foot column of water.
• Anti-siphon operation prevents contaminants from entering the emitter.
• Pressure compensating, ensuring consistent flow from 14.5 to 58 PSI.
• Recommended minimum filtration of 120 mesh.
• Compatible with 36" or 48" 2-way (#Q102463 / #Q102464) or 4-way (#Q112852 / #Q112853) Dripper Stake Assemblies.

• Reduces setup time considerably.
• Includes a 6.6 GPH pressure-compensating emitter with CNL check valve.
• Comes with 36 inches of Super Flex Tubing.
• Minimum operating pressure: 22 PSI.
• Pair with Netafim single pattern (#Q102456) or double pattern (#Q102457) standard spray stakes.

• TurboNet labyrinth with large water passage ensures reliable performance.
• CNL check valve prevents drainage and maintains consistent flow.
• Pressure compensating for uniform water delivery with varying pressure.
• UV-resistant and withstands exposure to standard fertilizers.
• Minimum operating pressure of 10 PSI.
