Dosers, Pumps, & Irrigation Supplies

Light blocking mixing chamber sunshade for Dosatron® 3/4" mixing chambers. Prevents the light from impacting nutrient rich water, eliminating the potential for biofilm and algae growth in the chamber. Removable cover for the clear bowl portion of the mixing chamber.

Injection seal kit for the Dosatron® D14MZ2 - 14 GPM. Recommended for a yearly maintenance.

Kit Includes:

• Injection sleeve o-ring.
• Check valve assembly.
• Injection stem o-ring.
• Plunger seal.

Mini maintenance kit for the Dosatron® D14MZ3000 and D14TMZ3000 - 14 GPM.

Kit Includes:

• Plunger seal.
• Upper check valve assembly.
• Dosa-Lube (Silicone).

Dosatron® Li'l Bud-D Cart Hook-Up Kit for the 11 and 14 GPM Dosatron Injectors.

Includes:

• Filter.
• Check valve.
• Stainless steel clamps.
• 5/8 inch hose.
• Adaptors.

Dosatron injectors, and hook-up kit sold separately.

• Provide consistent water distribution across the entire system.
• Spray pattern angles downward to ensure water lands on the soil, avoiding contact with the pot's wall.
• Single-sided spray stake is ideal for placement near the edge of the pot.
• Alternative option includes Netafim's 'bow-tie' double-spray pattern for different watering needs.
• Pair with the Netafim 36 inch (#Q102480) or 48 in (#Q102479) single spray stake assembly.

• 1.74 psi internal check valve prevents low emitter drainage, holding back up to a 3.9-foot column of water.
• Reduces the risk of contaminants being drawn into the emitter.
• Pressure compensating design ensures consistent flow from 10.15 to 58 psi.
• Exclusive TurboNet® flow path for regulated flow and continuous self-cleaning action.
• Sharp barb allows for easy installation with no tools required.

• 1.74 psi internal check valve prevents low emitter drainage, holding back up to a 3.9-foot column of water.
• Reduces the risk of contaminants being drawn into the emitter.
• Pressure compensating design ensures consistent flow from 10.15 to 58 psi.
• Exclusive TurboNet® flow path for regulated flow and continuous self-cleaning action.
• Sharp barb allows for easy installation with no tools required.

• Unique design regulates flow and provides continuous self-cleaning action.
• Features a 2.2 PSI internal check valve that prevents low emitter drainage, holding back up to a 5-foot column of water.
• Anti-siphon operation prevents contaminants from entering the emitter.
• Pressure compensating, ensuring consistent flow from 14.5 to 58 PSI.
• Recommended minimum filtration of 120 mesh.
• Compatible with 36" or 48" 2-way (#Q102463 / #Q102464) or 4-way (#Q112852 / #Q112853) Dripper Stake Assemblies.

• Simple to operate and maintain.
• Reliable even in harsh conditions.
• Tight sealing valve with fully supported diaphragm.
• Flow range: 0.25 - 110 GPM

• Features crisscrossed grooves in disc rings for effective debris trapping.
• As pressure increases, disc rings compress tightly, forcing water through the grooves.
• Debris is trapped within the disc rings, ensuring only clean water flows into the irrigation system.
• Operates efficiently with flow rates from 10 to 52 GPM.

The Netafim™ Punch Tool is a heavy duty plastic handle punch that makes adding any Netafim drippers to your irrigation system easy and convenient.

• Equipped with a barbed outlet and CNL check valve to prevent low emitter drainage.
• Anti-siphon operation keeps contaminants from entering the emitter.
• Pressure compensating design ensures consistent flow from 12 - 58 PSI.
• Compatible with Netafim Super Flex UV White PE Tubing (#Q100705).

• Instantly responds to pressure variations to maintain a constant 35 PSI outlet pressure.
• Non-corrosive, high-quality plastic bodies withstand commonly used fertilizers and chemicals.
• Sealed regulating unit with a stainless steel spring and screw for easy maintenance and replacement.
• Maximum Operating Pressure: 145 PSI.
• GPM: 4.5 - 17.6.

• Reduces setup time considerably.
• Includes a 6.6 GPH pressure-compensating emitter with CNL check valve.
• Comes with 48 inches of Super Flex Tubing.
• Minimum operating pressure: 22 PSI.
• Pair with Netafim single pattern (#Q102456) or double pattern (#Q102457) standard spray stakes.

• Dual 17 mm barbed tubing connectors fit the 17 mm UV Poly Tubing (#Q102449).
• Connects to 1/2 inch female pipe thread.
• Easy installation without clamps, glue, or tools for a tight, leak-proof connection.
• Compatible with the Netafim Liquid Filled Pressure Gauge 0 - 100 PSI (#Q102475) for water pressure measurement.
• Note: Requires 1/2 x 1/4 inch schedule 40 TxT reducer.

• Superior clog resistance with Netafim Typhoon™ emitters.
• Four evenly spaced emitters distribute water uniformly for optimal rootzone development.
• Quick action installation: place ring in the container, then connect the pre-cut micro tubing.
• Compatible with 2 - 15 Gallon (10 - 60 liter) containers.
• Diameter: 5 inches (120 millimeters).
• Flow rate: four outlets with flow of 0.53 GPH (2.0 L/h) each at 14.5 psi (1.0 bar).
• Chemical and UV resistance for durability.
• Colored light gray for improved light reflection.
• Max. operating pressure for hub drippers - 58.0 psi (4.0 bars).

• 1 1/2 inch water hammer arrestor kit.
• Normal operating pressure - 35 to 500 psi.
• Spike pressure not to exceed 2,000 psi.

Features: stainless steel water hammer arrestor, 4-inch nipple, tee, elbow, close nipple, union, and a roll of thread seal tape.

Mini maintenance kit for the D40MZ3000 -40 GPM. The Mini Maintenance Kits are the perfect, economical solution for Dosatron® users and growers who perform maintenance on a regular schedule.

Kit Includes:

• Plunger seal
• Upper check valve assembly
• Dosa-Lube (Silicone)

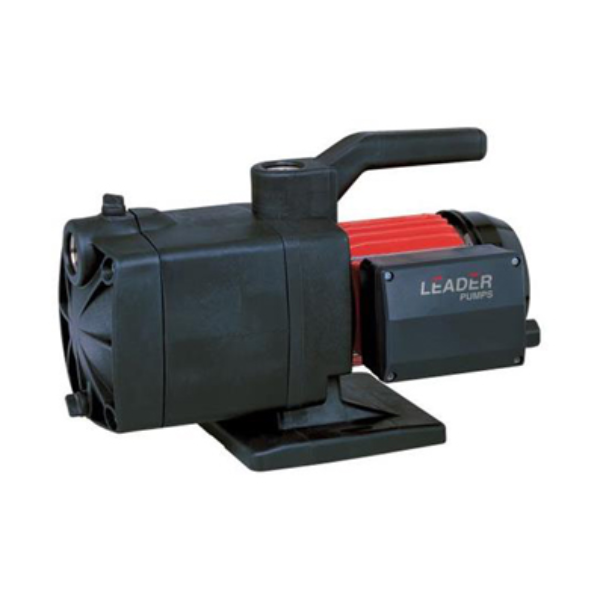

Highly reliable self-priming jet pumps with excellent suction capability that allows the free passage of air bubbles, which can be used for supplying water for domestic and irrigation applications. Built with anti-corrosive and rust-proof materials. Motors with thermic overload protection. Wear-resistant shafts and impellers. Double sealing system between motor and hydraulic part. High resistance to frost and icing. Manual on/off switch.

• Installs directly where needed for precise irrigation.
• Reduces setup time considerably.
• Features a 0.5 GPH pressure-compensating emitter with CNL check valve.
• Includes 30 inches (76 cm) of Super Flex Tubing.
• Comes with an angled barbed stake for secure placement.
• Requires a minimum operating pressure of 10 psi.

• Ideal injector for common liquid fertilizer programs.
• Dilution Range: 1:1000 - 1:100 (0.1% to 1%).
• Water Flow Range: 2.2 to 40 GPM.
• Operating Pressure Range: 4.3 to 116 PSI.
• Dimensions: 125 1/4″ x 8 1/2″.
• Weight: 6 lbs.
• Connection Size: 1.5″ NPT.
• Maximum Temperature: 104°F.
• Higher flow rates and greater chemical compatibility compared to existing technology.
• Easy installation; can be adapted to new or existing Hi-Flo Nutrient Delivery Systems.
• Extended dosing range achieved by swapping out the injection stem and plunger assembly.

The Dosatron® Water-Powered Nutrient Delivery System Mixing Chamber Kit enhances the blending as the solution passes through. It’s a must for silicates.

Includes:

• Union.
• Mixing chamber.
• Nipples.
• Seal thread tape.

Extend the life of your Dosatron® D14MZ2 - 14 GPM and D14MZ2-HY with Dosatron's Rebuild Kit.

Two-Part Kit Includes:

• Part 1: piston kit contents
• Part 2: seal kit contents, complete, detailed instructions

• Excellent ultra-violet (UV) resistance.
• Reflective and completely opaque to prevent algae growth.
• Withstands heat, direct sun and harsh chemicals.
• Produces cooler water temperatures enhancing plant growth.
• 17 millimeter polyethylene tubing (0.560 in ID x 0.660 in OD).
• 250 feet (76 meters).

• Barb ends fit securely on UV Polyethylene Tubing (#Q102449)
• Techlock threaded caps and compression rings ensure a tight seal
• Operating pressure range: 0 to 100 psi

• Provide consistent water distribution across the entire system.
• Spray pattern angles downward to ensure water lands on the soil, avoiding contact with the pot's wall.
• Single-sided spray stake is ideal for placement near the edge of the pot.
• Alternative option includes Netafim's 'bow-tie' double-spray pattern for different watering needs.
• Pair with the Netafim 36 inch (#Q100716) or 48 inch (#Q102478) single spray stake assembly.
